Outboard motor hoist

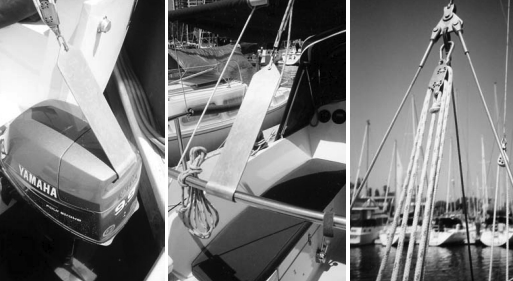

Glyn and Marilyn Judson’s Easy Hoist makes it easier for Marilyn to store their outboard when singlehanding the boat.
Glyn and Marilyn Judson’s Easy Hoist makes it easier for Marilyn to store their outboard when singlehanding the boat.
Glyn and Marilyn Judson’s Easy Hoist makes it easier for Marilyn to store their outboard when singlehanding the boat.

Issue 30 : May/Jun 2003

My wife, Marilyn, began singlehanding our 25-foot sloop in the mid-1980s. One problem she had at that time was hoisting our outboard up and into the stowed position. I made a device for her that we call our Easy Hoist. It did the same thing as her arm but with more mechanical advantage and less effort on her part. I put a 1-inch bend on the end so it could be stowed conveniently on the stern rail when not in use.

To make it I attached a Harken #245 Micro block to our split aft stay and then added a Harken #244 Micro block attached to the Easy Hoist. It could be easily adapted to work on a single stay if a suitable means were made to attach the #245. The 1⁄8-inch stainless steel is 4 inches wide and about 15 inches long. A shorter length would work just as well.
