Keep things under control with off-center vangs
Issue 59 : Mar/Apr 2008
When we reconfigured MOMO, our Mason 43, for bluewater sailing, we searched for a way to replace our 4:1-purchase vang with something more powerful. We also needed something that could act as a preventer and steady the boom. Eventually we developed a system of dual off-centered vangs that has proven robust, effective, and easy to use. In fact, these vangs turned out to be our most significant modification to the sailboat’s rig, greatly enhancing performance and safety.
The typical sailboat features a centered vang, which is secured at the base of the mast and runs at an angle of between 30 and 60 degrees to a position on the boom a few feet from the gooseneck. The vang keeps the boom down and thus controls the twist of the main, particularly when the boat heads off the wind and that function can no longer be fulfilled by the mainsheet and traveler. Older boats like ours often employ a modest 4:1 tackle, which is barely adequate even on small boats. Skippers with deep pockets can install a masculine piece of hydraulic muscle powerful enough to move mountains but which costs more than a new mainsail. New boats increasingly sport rigid mechanical vangs that also support the boom in lieu of the topping lift, although I don’t understand why anyone would trade the supple strength of rope for the rigid vulnerability of aluminum extrusions and steel. Judging from manufacturers’ warnings and reports I’ve read from people who use them, rigid vangs seem like a heavy and expensive way to replace a fully functional topping lift with a product that offers, above all, the potential to break.
Any desired position
The virtue of the centered vang lies in pulling the boom down without impinging on its freedom to swing from side to side. The boom can be sheeted to any desired position while the vang’s tension remains the same. But such convenience comes at a price. As much as half of the force applied to a centered vang does not actually pull the boom down but, rather, wastes itself driving the boom into the mast and stressing the gooseneck. Little can be done about that: if the boom attachment is moved forward, the downward pull of the vang increases, but leverage is lost; moving the boom attachment aft increases the vang’s leverage, but decreases the proportion of force actually used to bring the boom down.
Furthermore, giving the boom the freedom to swing is not necessarily a good thing. With any kind of seaway, particularly in light winds, the boom bounces around with a violence that benefits neither the rig nor the canvas. And the further the vessel points down wind, the greater danger it faces from an accidental jibe. Inevitably, measures need to be taken to steady the boom. Often, however, such measures are awkward and unsafe. One common recommendation, for instance, is to rig a preventer to the end of the boom, lead it forward to a block on the bow and bring it back to the cockpit. But that is easier said than done, especially after a jibe at night or in heavy weather. Another way to rig a preventer is to change from a centered to an off-centered vang – by releasing the bottom of the vang from its position at the base of the mast and moving it outboard so that the vang constrains the boom. But a vang that always needs to be moved from one place to another is a nuisance.

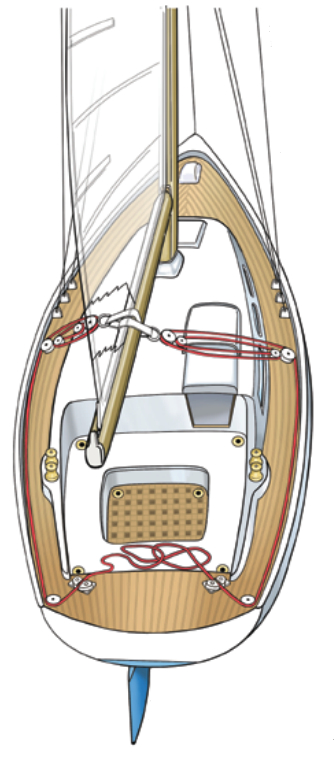

Vangs on each side
On Momo we decided to set up an off-centered vang for each side of the boat, with both sides controlled from the cockpit. Not only are these vangs more effective than a centered vang at pulling down the boom, they also act as preventers and help steady the boom in a seaway. Jibing and tacking are easy and, using the vangs and mainsheet, we can secure the boom in any position we desire within seconds.
Due to the difference in leverage, any tackle that controls the boom from the middle encounters substantially more force than tackle, which controls the boom from the end. Generally speaking, the tackle for an off-centered vang should be at least as strong as that which you might use to rig your boat for mid-boom sheeting. Consider that blocks always fail before lines do and that a multi-part tackle is only as strong as its weakest block. Also pay attention to the size and strength of your boom.
If your boom has a particularly small cross-section, an off-centered vang might not be appropriate. If you have any doubt, try vanging your boom to the leeward rail, using your center vang tackle, and watch for bending. If there is much bending of the boom, you need a stouter spar to make this rig safe.
The vang’s attachments to the boom and deck are critical. The forces faced by an off-centered vang, especially the shock loading from a slatting main, can overwhelm hardware, pull fittings through decks, break stanchions, and lift genoa tracks. This applies not only to a boat like Momo, which has a displacement approaching 30,000 pounds and a mainsail of 434 square feet, but to smaller boats as well. Faced with rolling seas and a slatting main, the ill-conceived vang we once installed on our 28-foot Pearson Triton, for instance, tore a hole in the deck.
Webbing attachment

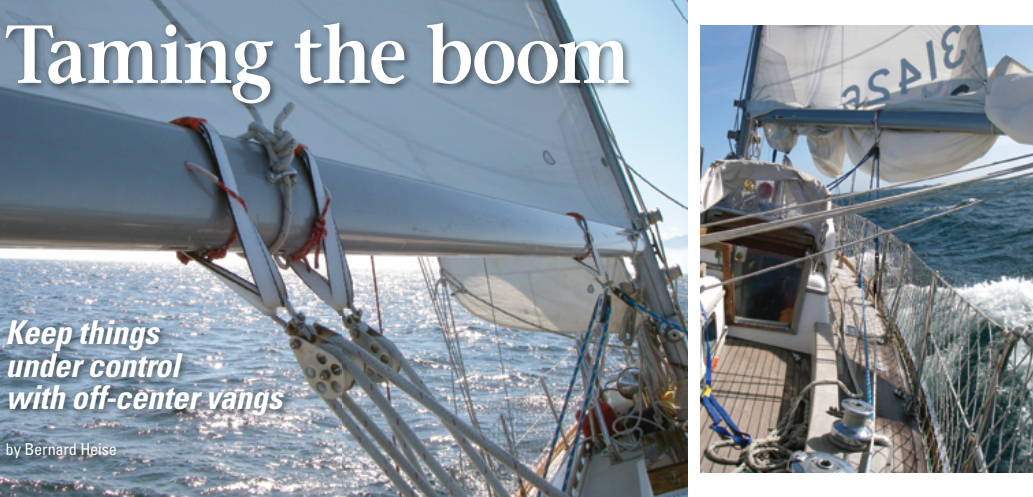

On Momo we secured the vangs to the boom with a webbing strap. In fact, ever since a stainless boom attachment for our mainsheet sheared while we were motoring through a windless stretch of sloppy seas, we have used webbing straps for all of our boom attachments. They absorb shock and accommodate shifting directions of loads; they are easy to inspect and replace; and they are light and incredibly strong — the 1-inch-wide straps we use have a working load of 3,200 pounds with a safety factor of 5:1. They are also inexpensive — after asking a boatyard crane operator where he purchased his straps, we went to the same place and discovered that they could custom-make any kind of straps we wanted at very reasonable prices. The 2-foot-long straps we use on the boom were made by Grip-Sure Manufacturing in Richmond, British Columbia, and cost less than $8 each. Compare that to the $40 we might otherwise have spent for a stainless-steel boom bail that, tortured by the stress of an off-center vang, would inevitably fail.
One way to assure the strength of the lower fitting is to secure the vang to the chainplates. But leading the lines fairly can prove difficult, and, for safety reasons I will explain later, we did not want vangs positioned that far forward. On Momo we secured the bottom of the vangs to two separate points aft of the chainplates, spreading the load between the midship cleat and a stanchion base. The points are 24 inches apart, and each is reinforced with a 4-inch by 6-inch stainless-steel backing plate.
The vang’s tackle should generate sufficient force to pull the boom down in a strong wind. Smaller boats might be well-enough served by a two-block tackle with a 4:1 purchase.
More power

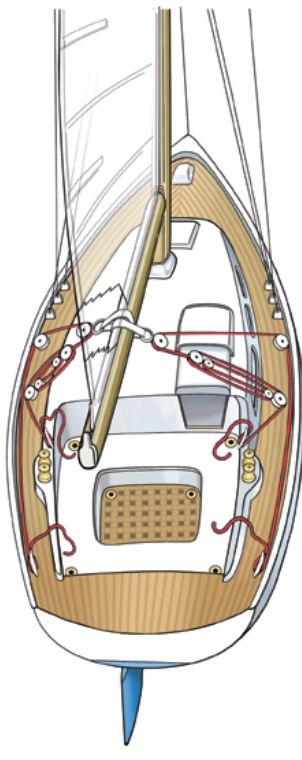

Controlling the sail on our Mason 43, however, requires greater mechanical advantage. Thus the vangs on Momo have a purchase of 8:1 — the same as obtained from a typical rigid vang.
To gain such purchase without using excessive lengths of line or numbers of blocks, the vangs are composed of two cascading tackles. The first tackle consists of a line, the standing part of which is fixed to a fiddle block. The hauling part is reeved through a block at the boom, brought down to a block at the midship cleat, and led back to the cockpit, where it can be made fast. By itself, it yields a 2:1 purchase. This part of the vang bears the most load, thus the blocks and line must be sized accordingly.

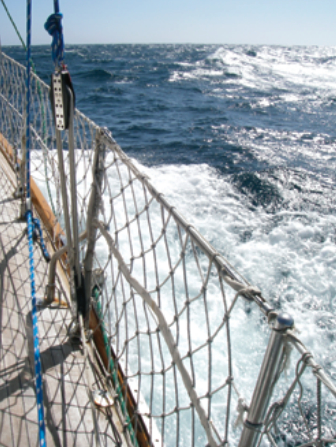

On our boat, we use 90 mm blocks by Wichard (safe working load of 4,400 pounds) at the boom, Schaefer’s 704-5 block (safe working load of 2,250 pounds) at the cleat, and 1⁄2-inch line (breaking strength of 8,500 pounds). The line must also be long enough to allow the boom to swing freely to the opposite side of the boat.
The second tackle bears only half the load of the first and thus can be sized somewhat smaller. The standing part of the second tackle is fixed to a fiddle block secured to a stanchion base about 24 inches aft of the midship cleat. The hauling part is then reeved back and forth between the fiddle block that terminates the first tackle, and the fiddle block that is secured at the stanchion base, and finally brought back to the cockpit where it can be made fast. We use Harken’s fiddle blocks 1559 and 1560 (safe working loads of 1,800 pounds) and 3⁄8-inch line (breaking strength of 4,400 pounds). By itself, this second tackle yields a purchase of 4:1. Between them, however, the two tackles yield a purchase of 8:1.
Two adjustments
Operating the vang involves two steps. First, you make a gross adjustment using the first tackle. Simply put, you haul on the first tackle until the fiddle block is brought all the way up to the boom. Then you use the second tackle to achieve the desired tension and sail shape.
The only serious danger with an offcenter vang involves tripping the boom in heavy seas. If the boom digs deeply into a wave while constrained by the vang, it could very well snap. With a system like ours, the vang should retain enough elasticity to avoid such a catastrophe. Since the vang’s bottom attachments are situated aft of the chainplates, it does not actually hold the boom all the way out. The distance between the vang’s bottom attachments absorbs shock by allowing the boom to rock back and forth a little bit while under tension. The ropes and the webbing also stretch. Furthermore, the location of the vang’s bottom attachments also help us recover from accidental jibes. When the wind catches us aback, the boom swings inward a few feet before being stopped by the vang. In this position, the boat actually feels like it’s hove-to. It continues to make enough headway that, by putting the helm hard over, we can bring the stern through the wind again and resume our course.
During gale conditions we’ve had the boom dip lightly into the sea, but this is not something I like experimenting with. The best thing is to avoid tripping the boom at all. Reefing helps, not only by reducing heel but because each successive reef raises the end of the boom a little further from the deck (this, of course, depends upon the design of the main). Eventually, conditions might require striking the mainsail and flying a trysail without the boom. In the absence of boom gallows, the vangs can center the boom and hold it steady.
Less dangerous
In any event, even if the boom trips in the sea, the rig faces less danger from an off-center vang than from a preventer run forward from the end of boom. Whereas the vang might break the boom, the preventer might generate sufficient torque to bring down the mast.
Building a quality robust vang is not exactly cheap. Our vangs were designed to sustain a safe working load in excess of 3,000 pounds. Based on the catalog of a leading chandlery, the blocks we used retail at around $650, although a little bit of searching can yield significantly lower prices. To that one needs to add the cost of line and other incidentals needed to secure the vang and lead the falls back to the cockpit. Still, compared to other alternatives, a vang like ours is a veritable bargain and much more versatile. A mechanical vang for a boat our size retails at more than $1,800, while setting up a hydraulic vang for a boat our size costs around $2,800. With all the money you save, you can buy yourself something nice — perhaps a little rowing dinghy. And when you stow it on deck, shove it right against the mast, because there won’t be a centered vang to get in the way.
Bernard Heise and his wife, Michelle, lived and cruised aboard a Pearson Triton along the Atlantic Coast before heading south aboard a Mason 43 with their larger family, which currently includes two young daughters, Lola and Jana. So far, they’ve sailed the waters of Mexico, Hawaii, British Columbia, and Alaska. Their website is http://www.madeonmomo.com.
