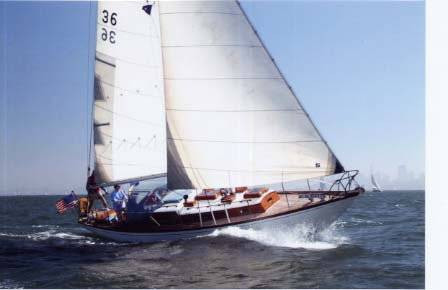

Robb 35
Description
The ROBB 35 is a cruising yacht designed by Arthur Robb. Built for serious cruising, she offers reassuring stability in all conditions, Her generous sail plan delivers excellent light-air performance. Designed for serious cruising, whether coastal hopping or ocean crossings.
Construction Details
| Designer | Arthur Robb |
|---|---|
| Length | 35.000 ft |
| LOA | 35.500 ft |
| LWL | 24.000 ft |
| Beam | 10.000 ft |
| Displacement | 14880 lb |
| Max Draft | 4.670 ft |
The standard boat dimensions
| i | 41 ft |
|---|---|
| j | 13.50 ft |
| p | 37.58 ft |
| e | 16.25 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 41 ft | 13.50 ft | 37.58 ft | 16.25 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 37.58 ft - (11454 mm) |
| Foot | * 16.25 ft - (4953 mm) |
| Leech-AftHdBd | * 40.14 ft - (12235 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.42 ft - (12320 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 313.49 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 34.53 ft - (10525 mm) |
| Foot | * 17.98 ft - (5480 mm) |
| Leech | * 29.83 ft - (9092 mm) |
| Percentage LP | * 115.04 % |
| Length Perpendicular | * 15.53 ft - (4734 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 268.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 41.01 ft - (12500 mm) |
| Foot | * 21.88 ft - (6669 mm) |
| Leech | * 38.48 ft - (11729 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 20.25 ft - (6172 mm) |
| Deck Angle | * 4.04 ° |
| Area | * 415.21 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 40 ft - (12192 mm) |
| Foot | 19.75 ft - (6020 mm) |
| Leech | 37.5 ft - (11430 mm) |
| Percentage LP | * 135.93 % |
| Length Perpendicular | * 18.35 ft - (5593 mm) |
| Deck Angle | * 3.46 ° |
| Area | * 367.05 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 41.01 ft - (12500 mm) |
| MidGirth | * 24.3 ft - (7407 mm) |
| Foot | * 24.3 ft - (7407 mm) |
| Perc LP | * 180 % |
| Area | * 847 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
