Reinell 26
Description

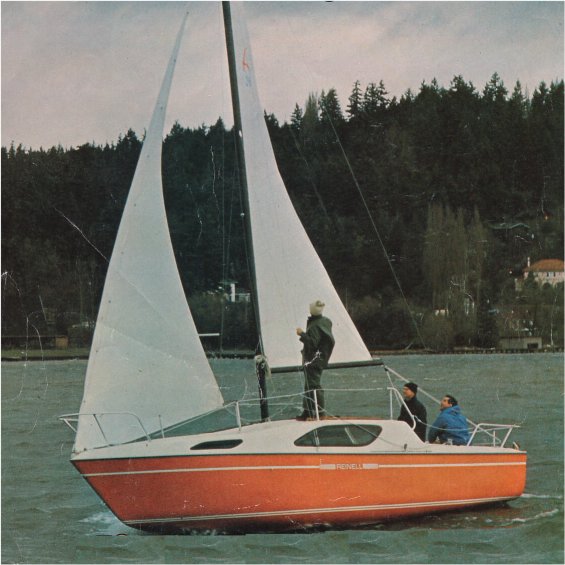

The Reinell 26 is a compact American cruising sailboat designed by Arthur S. Henry and constructed by Reinell Boat Works beginning in 1975. This 25.67-foot vessel represents a strategic collaboration between Reinell (traditionally a Pacific Northwest powerboat manufacturer) and naval architect Arthur S. Henry, who was also president of American Mariner Industries (AMI). The Reinell 26 is effectively a sibling to the American 26, as both vessels were produced from the same hull molds, allowing Reinell to enter the sailing segment with a proven design. Built with fiberglass construction during Reinell's transition to modern materials, the boat was marketed as a versatile coastal cruiser that balanced trailerability requirements with the comforts of a much larger vessel. The design features a masthead sloop rig with a retractable swing keel configuration that significantly reduces draft for trailering and shallow-water exploration, making it an ideal choice for sailors seeking adventure in diverse cruising grounds.
Construction Details
| Designer | Arthur S. Henry |
|---|---|
| Builder | Reinell Boat Co. |
| Length | 26.000 ft |
| LOA | 26.000 ft |
| LWL | 23.500 ft |
| Beam | 8.000 ft |
| Displacement | 3800 lb |
| Ballast | 1350 lb |
| Max Draft | 2.500 ft |
| Year Built | 1975 |
The standard boat dimensions
| i | 26.50 ft |
|---|---|
| j | 11.42 ft |
| p | 24.75 ft |
| e | 10 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 26.50 ft | 11.42 ft | 24.75 ft | 10 ft | - | - | - | - |
Documents
Blueprints
Sails
Reinell 26 - MAINSAIL
| Luff | * 24.75 ft - (7544 mm) |
|---|---|
| Foot | * 10 ft - (3048 mm) |
| Leech | * 26.23 ft - (7995 mm) |
| Tack Angle | * 88.01 ° |
| Diagonal | * 26.37 ft - (8038 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | 123.6 ft² |
| Edit in Calculator |
Reinell 26 - JIBSAIL
| Luff | * 23.08 ft - (7035 mm) |
|---|---|
| Foot | * 16.09 ft - (4904 mm) |
| Leech | * 19.03 ft - (5800 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.13 ft - (4002 mm) |
| Deck Angle | * 12 ° |
| Area | 151.49 ft² |
| Edit in Calculator |
Reinell 26 - GENOA
| Luff | * 27.41 ft - (8355 mm) |
|---|---|
| Foot | * 19.28 ft - (5877 mm) |
| Leech | * 25.26 ft - (7699 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 17.13 ft - (5221 mm) |
| Deck Angle | * 4 ° |
| Area | 234.78 ft² |
| Edit in Calculator |
Reinell 26 - SPINNAKER
| Stays | * 27.41 ft - (8355 mm) |
|---|---|
| MidGirth | * 20.56 ft - (6267 mm) |
| Foot | * 20.56 ft - (6267 mm) |
| Perc LP | * 180 % |
| Area | 479.02 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
