Quattro 16
Description
The QUATTRO 16 is a twin trapeze high performance racing cat that has proven faster than the Hobie 16 or Dart 18. The hulls are rounded V built using the "stitch and glue" plywood technique which results in stiff, light-weight hulls (two adults can carry a fully rigged Quattro up the beach).
Construction Details
| Designer | Richard Woods |
|---|---|
| Builder | Home Built |
| Length | 16.417 ft |
| LOA | 16.410 ft |
| LWL | 16.000 ft |
| Beam | 8.000 ft |
| Displacement | 298 lb |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails

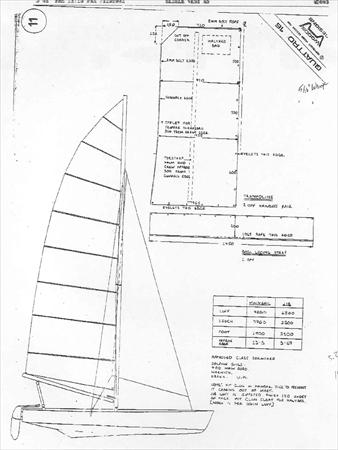

Quattro 16 - MAINSAIL
| Luff | 25.59 ft - (7800 mm) |
|---|---|
| Foot | 7.87 ft - (2399 mm) |
| Leech | * 25.03 ft - (7629 mm) |
| Tack Angle | * 78.73 ° |
| Diagonal | 25.26 ft - (7699 mm) |
| Head (inches) | 5 in - (127 mm) |
| Area | * 103.12 ft² |
| Edit in Calculator |
Quattro 16 - JIBSAIL
| Luff | 20.67 ft - (6300 mm) |
|---|---|
| Foot | 6.89 ft - (2100 mm) |
| Leech | 18.045 ft - (5500 mm) |
| Length Perpendicular | * 5.87 ft - (1789 mm) |
| Area | * 60.67 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
