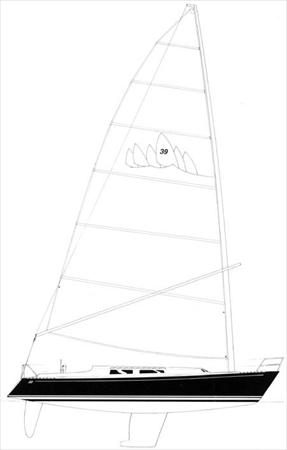

Wyliecat 39
Description
LOA: 39' 4" ft 12 m LWL: 33' 0" ft 10.0584 m Beam: 11' 5" ft 3.5 m Draft: 6' 6" ft 1.98 m Displacement: 12,000 lbs 5443 kg Ballast: 5920 lbs 2685 kg
Construction Details
| Designer | Tom Wylie |
|---|
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 52 ft |
| e | 26.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 52 ft | 26.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 52 ft - (15850 mm) |
| Foot | * 26.75 ft - (8153 mm) |
| Leech-AftHdBd | * 57.35 ft - (17480 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 57.64 ft - (17569 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 706.79 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
