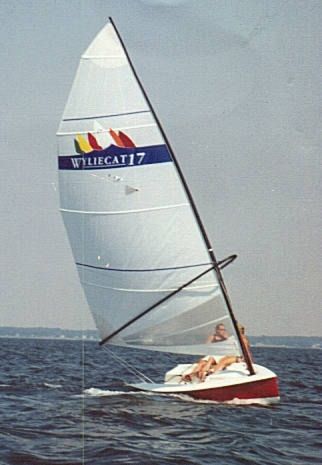

Wyliecat 17
Description
LWL 15'10" Beam 6'1" Draft 4'1.5" Keel Wght. 100 lbs.
Construction Details
| Designer | Thomas Wylie |
|---|---|
| Length | 17.500 ft |
| LOA | 17.500 ft |
| LWL | 15.830 ft |
| Beam | 6.080 ft |
| Displacement | 690 lb |
| Max Draft | 3.500 ft |
The standard boat dimensions
| i | 17 ft |
|---|---|
| j | 8 ft |
| p | 22 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 17 ft | 8 ft | 22 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 22 ft - (6706 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 21.02 ft - (6407 mm) |
| Tack Ang | * 70.48 ° |
| Diag (clew/head) | 21.25 ft - (6477 mm) |
| Head (inches) | 4.5 in |
| Area (no Roach) | * 127.54 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 18.25 ft - (5563 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 16.25 ft - (4953 mm) |
| Perc LP | * 165 |
| Area | * 178 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 20 ft - (6096 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 15.42 ft - (4700 mm) |
| Perc LP | * 165 |
| Area | * 195 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
