Winter Wren II
Description
Winter Wren II is designed to be the ultimate in a pocket yacht with a tidy 176 sq. ft. sail plan. The Bermuda rigs mast steps on the cabin top and is easy to raise and lower. Winter Wren II has been designed from the ground up for trailering. Her hull has 685 lbs. of internal ballast and she sails stiff and stable. A very efficient dagger-board configuration is used for the lateral plane and Winter Wren II draws only 1’1″ of water when retracted and 3’6″ when extended.
Construction Details
| Designer | Sam Devlin |
|---|---|
| Length | 19.000 ft |
| LOA | 18.670 ft |
| LWL | 15.167 ft |
| Beam | 7.083 ft |
| Displacement | 1800 lb |
| Max Draft | 3.500 ft |
| Min Draft | 1.083 ft |
The standard boat dimensions
| i | 18.38 ft |
|---|---|
| j | 6.38 ft |
| p | 20.33 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 18.38 ft | 6.38 ft | 20.33 ft | 11 ft | - | - | - | - |

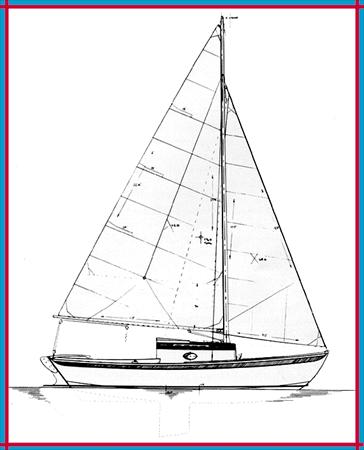

Blueprints
Sails
Winter Wren II - MAINSAIL
| Luff | 20.33 ft - (6197 mm) |
|---|---|
| Foot | 11 ft - (3353 mm) |
| Leech | * 22.51 ft - (6861 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 22.77 ft - (6940 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 115.72 ft² |
| Edit in Calculator | |
Winter Wren II - JIBSAIL
| Luff | 18 ft - (5486 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | 16 ft - (4877 mm) |
| Percentage LP | * 111.44 % |
| Length Perpendicular | 7.11 ft - (2167 mm) |
| Deck Angle | * 8.14 ° |
| Area | * 63.99 ft² |
| Edit in Calculator | |
Winter Wren II - SPINNAKER
| Stays | * 18.48 ft - (5633 mm) |
|---|---|
| MidGirth | * 11.48 ft - (3499 mm) |
| Foot | * 11.48 ft - (3499 mm) |
| Perc LP | * 180 % |
| Area | * 180 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
