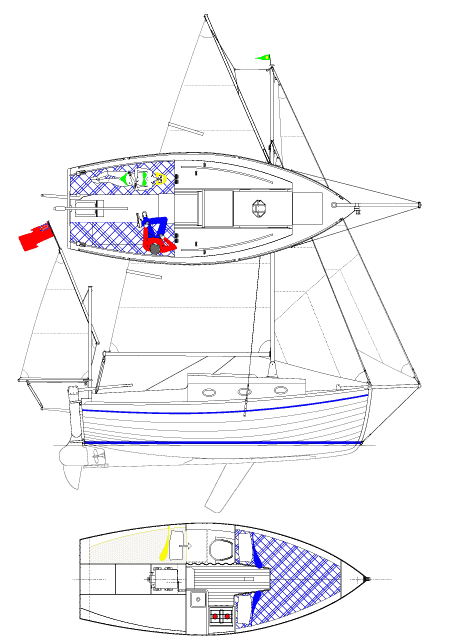

Whisstock Design #119 Yawl
Description
The Whisstock Design #119 Yawl is a sailboat.
Sail calculations are not available for this boat as some dimensions are missing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 17.600 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GAFF MAIN |
|---|---|
| Luff | 9.892 ft - (3015 mm) |
| Foot | 8.858 ft - (2700 mm) |
| Leech | 19.144 ft - (5835 mm) |
| Head | * 90.02 ft - (27438 mm) |
| Diag (clew/throat) | 13.281 ft - (4048 mm) |
| Tack Angle | 9.514 ° |
| Area | * 101.88 ft² |
| Sail Type | STAYSAIL |
|---|---|
| Luff | 13.648 ft - (4160 mm) |
| Foot | 6.398 ft - (1950 mm) |
| Leech | 11.384 ft - (3470 mm) |
| Area | * 36.2 ft² |
| Sail Type | YANKEE |
|---|---|
| Luff | 18.258 ft - (5565 mm) |
| Foot | 8.202 ft - (2500 mm) |
| Leech | 12.467 ft - (3800 mm) |
| Area | * 43 ft² |
| Sail Type | LUGSAIL |
|---|---|
| Luff | 3.166 ft - (965 mm) |
| Foot | 4.429 ft - (1350 mm) |
| Leech | 8.53 ft - (2600 mm) |
| Head | * 96.34 ft - (29364 mm) |
| Diag (clew/throat) | 5.722 ft - (1744 mm) |
| Tack Angle | 6.07 ° |
| Area | * 24.32 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
