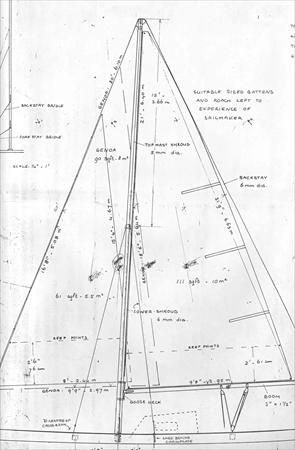

Wharram Hinemoa Catamaran (sloop rig)
Description
The Wharram Hinemoa Catamaran (sloop rig) is a sailboat designed by James Wharram Designs.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
Wharram Hinemoa Catamaran (sloop rig) - MAINSAIL
| Luff | 21 ft - (6401 mm) |
|---|---|
| Foot | 9.67 ft - (2947 mm) |
| Leech | * 21.53 ft - (6562 mm) |
| Tack Angle | * 76.69 ° |
| Diagonal | 21.75 ft - (6629 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 103.66 ft² |
| Edit in Calculator | |
Wharram Hinemoa Catamaran (sloop rig) - JIBSAIL
| Luff | 16.67 ft - (5081 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | 15.33 ft - (4673 mm) |
| Length Perpendicular | * 7.33 ft - (2234 mm) |
| Area | * 61.09 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
