WHARRAM 35 Tangaroa
Description
The WHARRAM 35 Tangaroa is a sailboat designed by James Wharram Designs.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents

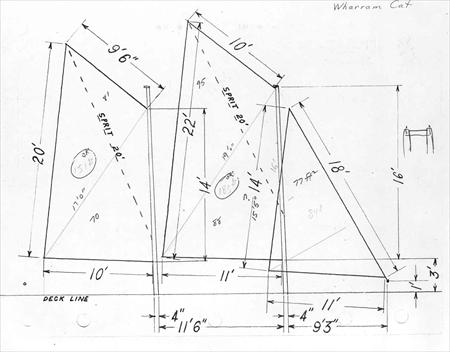

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
WHARRAM 35 Tangaroa - JIBSAIL
| Luff | 18 ft - (5486 mm) |
|---|---|
| Foot | 11 ft - (3353 mm) |
| Leech | 14 ft - (4267 mm) |
| Length Perpendicular | 8.55 ft - (2606 mm) |
| Area | * 76.98 ft² |
| Edit in Calculator | |
WHARRAM 35 Tangaroa - SPRIT
| Luff | 16 ft - (4877 mm) |
|---|---|
| Foot | 11 ft - (3353 mm) |
| Leech | 22 ft - (6706 mm) |
| Tack Angle | * 87.39 ° |
| Diag (clew/throat) | 19 ft - (5791 mm) |
| Head | 10 ft - (3048 mm) |
| Area | * 182.74 ft² |
| Edit in Calculator | |
WHARRAM 35 Tangaroa - SPRIT
| Luff | 14 ft - (4267 mm) |
|---|---|
| Foot | 10 ft - (3048 mm) |
| Leech | 20 ft - (6096 mm) |
| Tack Angle | * 88.57 ° |
| Diag (clew/throat) | 17 ft - (5182 mm) |
| Head | 9.5 ft - (2896 mm) |
| Area | * 150.56 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
