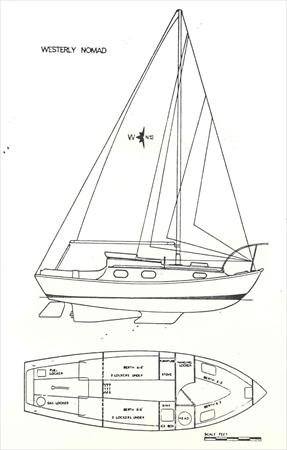

Westerly 22 Nomad
Description
The Westerly Nomad 22 is a classic British pocket cruiser built by Westerly Marine Construction Ltd. in the UK from 1967 to 1969, serving as an updated and improved version of the original Westerly 22 with a longer, higher coachroof for increased interior volume and a more spacious layout. Designed by Denys Rayner (also known as Commander Rayner, Westerly's founder and chief designer), it retains the twin-keel configuration for shallow draft and the ability to dry out upright on tidal flats or beaches, while offering a practical, forgiving sailing experience suitable for family coastal cruising or short-handed use. The boat is known for its solid fiberglass construction, modest but balanced performance, and enduring appeal among small-boat enthusiasts, though its higher cabin profile and deck layout were sometimes criticized as less elegant than the original Westerly 22.
Construction Details
| Designer | Denys (or Denis) A. Rayner |
|---|---|
| Builder | Westerly Marine (UK) |
| Length | 22.250 ft |
| LOA | 22.250 ft |
| LWL | 18.330 ft |
| Beam | 7.420 ft |
| Displacement | 3150 lb |
| Ballast | 1050 lb |
| Max Draft | 2.250 ft |
| Year Built | 1967 |
The standard boat dimensions
| i | 23 ft |
|---|---|
| j | 7 ft |
| p | 21.75 ft |
| e | 9.75 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 23 ft | 7 ft | 21.75 ft | 9.75 ft | - | - | - | - |
Sails
Westerly 22 Nomad - MAINSAIL
| Luff | * 21.75 ft - (6629 mm) |
|---|---|
| Foot | * 9.75 ft - (2972 mm) |
| Leech | * 23.31 ft - (7105 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 23.52 ft - (7169 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 109.61 ft² |
| Edit in Calculator |
Westerly 22 Nomad - JIBSAIL
| Luff | 22.83 ft - (6959 mm) |
|---|---|
| Foot | 10 ft - (3048 mm) |
| Leech | 21 ft - (6401 mm) |
| Percentage LP | * 131.29 % |
| Length Perpendicular | * 9.19 ft - (2801 mm) |
| Deck Angle | * 6.32 ° |
| Area | * 104.88 ft² |
| Edit in Calculator |
Westerly 22 Nomad - GENOA
| Luff | 22.83 ft - (6959 mm) |
|---|---|
| Foot | 15 ft - (4572 mm) |
| Leech | 24 ft - (7315 mm) |
| Percentage LP | * 207.57 % |
| Length Perpendicular | * 14.53 ft - (4429 mm) |
| Deck Angle | * -2.54 ° |
| Area | * 165.85 ft² |
| Edit in Calculator |
Westerly 22 Nomad - GENOA
| Luff | 16.91 ft - (5154 mm) |
|---|---|
| Foot | 11.31 ft - (3447 mm) |
| Leech | 16.04 ft - (4889 mm) |
| Percentage LP | * 147.43 % |
| Length Perpendicular | * 10.32 ft - (3146 mm) |
| Deck Angle | * 7.24 ° |
| Area | * 87.25 ft² |
| Edit in Calculator |
Westerly 22 Nomad - GENOA
| Luff | 21.75 ft - (6629 mm) |
|---|---|
| Foot | 9.167 ft - (2794 mm) |
| Leech | 20 ft - (6096 mm) |
| Percentage LP | * 120.43 % |
| Length Perpendicular | * 8.43 ft - (2569 mm) |
| Deck Angle | * 6.27 ° |
| Area | * 91.63 ft² |
| Edit in Calculator |
Westerly 22 Nomad - ASYMMETRICAL
| Luff | 23 ft - (7010 mm) |
|---|---|
| Foot | 12.5 ft - (3810 mm) |
| Leech | 21 ft - (6401 mm) |
| Perc LP | * 165 % |
| Area | * 216 ft² |
| Edit in Calculator |
Westerly 22 Nomad - SPINNAKER
| Stays | * 22.84 ft - (6962 mm) |
|---|---|
| MidGirth | * 12.6 ft - (3840 mm) |
| Foot | * 12.6 ft - (3840 mm) |
| Perc LP | * 180 % |
| Area | * 245 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
