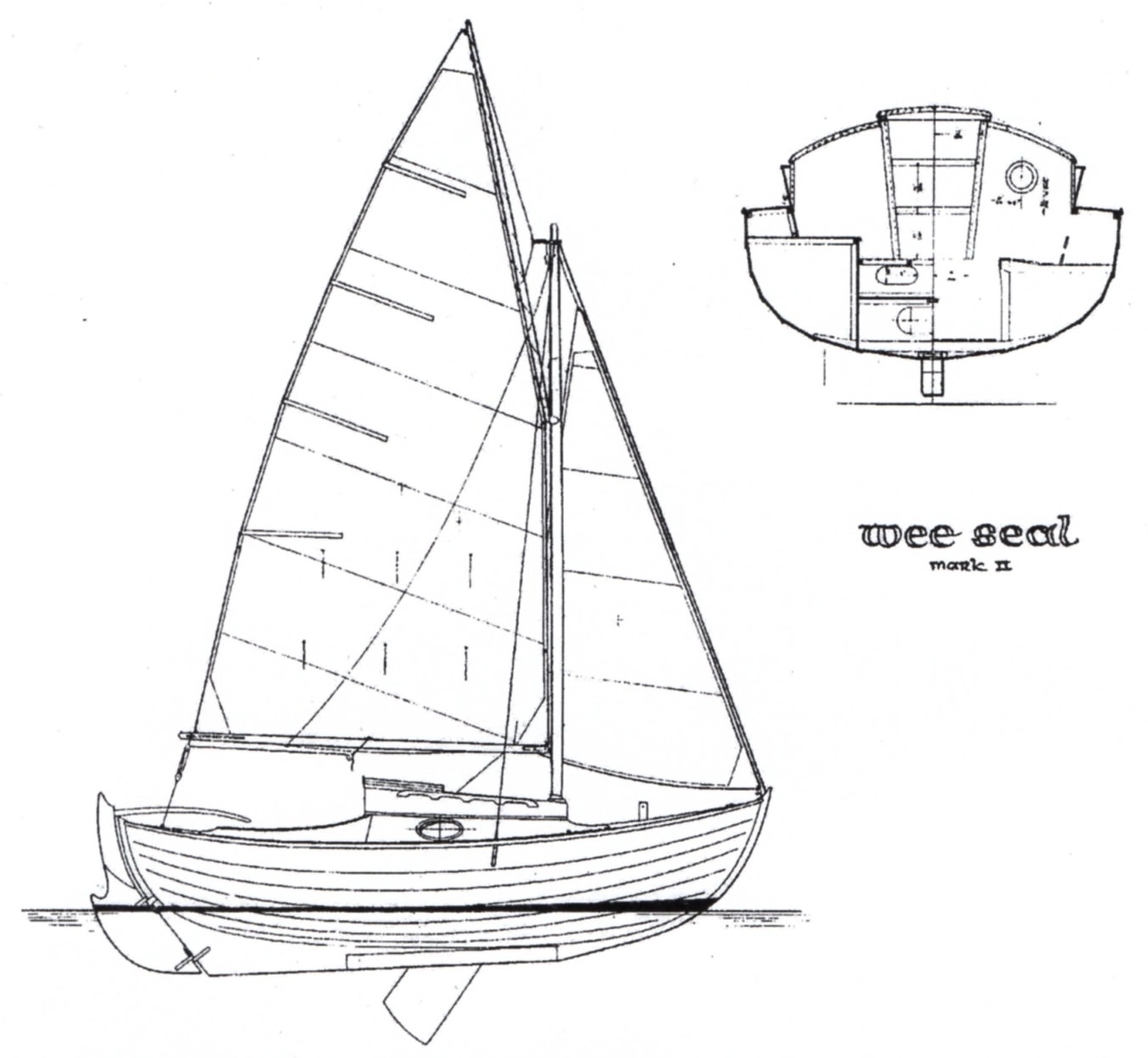

WEE SEAL MK II
Description
Wee Seal MK II by Iain Oughtred LOA: 18 ft 6 in (5.64 m) LWL: 15 ft 3 in (4.65 m) Beam: 7 ft 3 in (2.21 m) Draught: 1 ft 9 in (533 mm) Weight: 1550 lbs (705 kg) Displacement: 2210 lbs (1005 kg) Sail Area: 177 sq ft (16.44 sq m) Sailing Rig: Gunter Sloop
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 18.500 ft |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 7.42 ft |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22 ft | 7.42 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | GUNTER |
|---|---|
| Luff | 8.75 ft - (2667 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 21 ft - (6401 mm) |
| Head | * 85.41 ft - (26033 mm) |
| Diag (clew/throat) | 12.75 ft - (3886 mm) |
| Tack Angle | 11.5 ° |
| Area | * 99.77 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.5 ft - (4420 mm) |
| Foot | 6.75 ft - (2057 mm) |
| Leech | 12.25 ft - (3734 mm) |
| Length Perpendicular | * 5.68 ft - (1731 mm) |
| Area | * 41.18 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 22.5 ft - (6858 mm) |
| Foot | 13 ft - (3962 mm) |
| Leech | 20.5 ft - (6248 mm) |
| Perc LP | * 165 |
| Area | * 219 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | 10 ft - (3048 mm) |
| Foot | 5 ft - (1524 mm) |
| Leech | 8 ft - (2438 mm) |
| Length Perp | * 3.96 |
| Area | * 19.81 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
