Wee Seal Mark Ii
Description
2200 lbs displacement Gunter main
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |

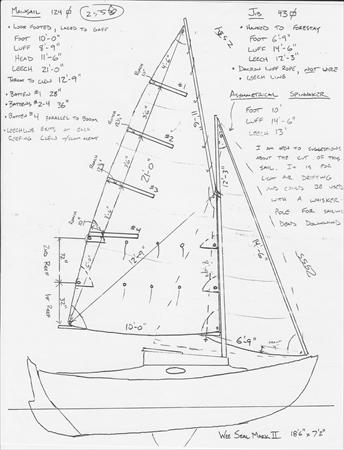

Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 7.17 ft - (2185 mm) |
| Leech | 12.67 ft - (3862 mm) |
| Length Perpendicular | 6.17 ft - (1881 mm) |
| Deck Angle | 10 ° |
| Area | * 45.4 ft² |
| Sail Type | GUNTER |
|---|---|
| Luff | 9.25 ft - (2819 mm) |
| Foot | 10 ft - (3048 mm) |
| Leech | 21.5 ft - (6553 mm) |
| Tack Angle | * 86.9 ° |
| Diag (clew/throat) | 13.25 ft - (4039 mm) |
| Head | 11.5 ft - (3505 mm) |
| Area | 130 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
