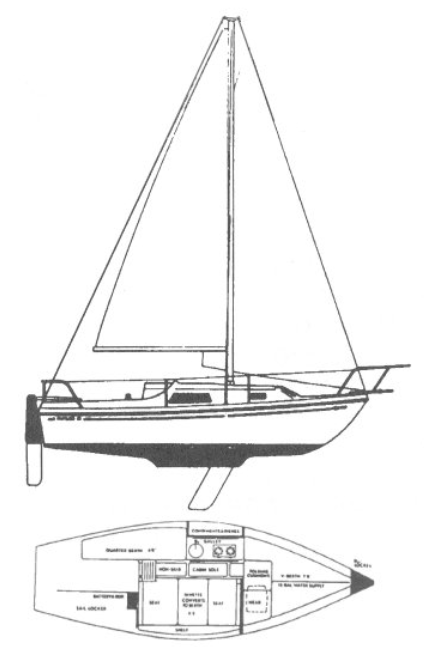

Watkins 23
Description
The Watkins 23 is essentially the Helsen 22 built under new ownership after Watkins Yachts of Clearwater, Florida, acquired the molds from Jopie Helsen in late 1973. First launched in 1974, Watkins made only minor cosmetic and hardware changes (different portlights, slightly revised interior joinery, and a Watkins logo on the sails), but the hull, deck, rig, and swing-keel arrangement are identical to the original Helsen 22. Over 400 were built before production ended around 1984, making it one of the more numerous 23-foot trailerable cruisers of its era.
Construction Details
| Designer | Johannes "Jopie" Helsen |
|---|---|
| Builder | Watkins Yachts |
| Length | 23.000 ft |
| LOA | 23.000 ft |
| LWL | 19.800 ft |
| Beam | 8.000 ft |
| Displacement | 2500 lb |
| Max Draft | 6.000 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | 24 ft |
|---|---|
| j | 9 ft |
| p | 21 ft |
| e | 8.67 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 24 ft | 9 ft | 21 ft | 8.67 ft | - | - | - | - |
Sails
Watkins 23 - MAINSAIL
| Luff | * 21 ft - (6401 mm) |
|---|---|
| Foot | * 8.67 ft - (2643 mm) |
| Leech | * 22.25 ft - (6782 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 22.44 ft - (6840 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 94.04 ft² |
| Edit in Calculator | |
Watkins 23 - JIBSAIL
| Luff | * 20.51 ft - (6251 mm) |
|---|---|
| Foot | * 12.28 ft - (3743 mm) |
| Leech | * 17.33 ft - (5282 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 10.35 ft - (3155 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 106.13 ft² |
| Edit in Calculator | |
Watkins 23 - GENOA
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 12.92 ft - (3938 mm) |
| Leech | 22 ft - (6706 mm) |
| Percentage LP | * 130.44 % |
| Length Perpendicular | * 11.74 ft - (3578 mm) |
| Deck Angle | * 4.12 ° |
| Area | * 140.88 ft² |
| Edit in Calculator | |
Watkins 23 - GENOA
| Luff | * 24.35 ft - (7422 mm) |
|---|---|
| Foot | * 14.84 ft - (4523 mm) |
| Leech | * 22.65 ft - (6904 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.5 ft - (4115 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 164.36 ft² |
| Edit in Calculator | |
Watkins 23 - ASYMMETRICAL
| Luff | 25 ft - (7620 mm) |
|---|---|
| Foot | 15 ft - (4572 mm) |
| Leech | 23 ft - (7010 mm) |
| Perc LP | * 165 % |
| Area | * 281 ft² |
| Edit in Calculator | |
Watkins 23 - STORMJIB
| Luff | * 14.1 ft - (4298 mm) |
|---|---|
| Foot | * 7 ft - (2134 mm) |
| Leech | * 11.05 ft - (3368 mm) |
| Perc LP | * 60 % |
| Length Perp | * 5.4 ft - (1646 mm) |
| Deck Angle | * 19 ° |
| Area | * 38.05 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
