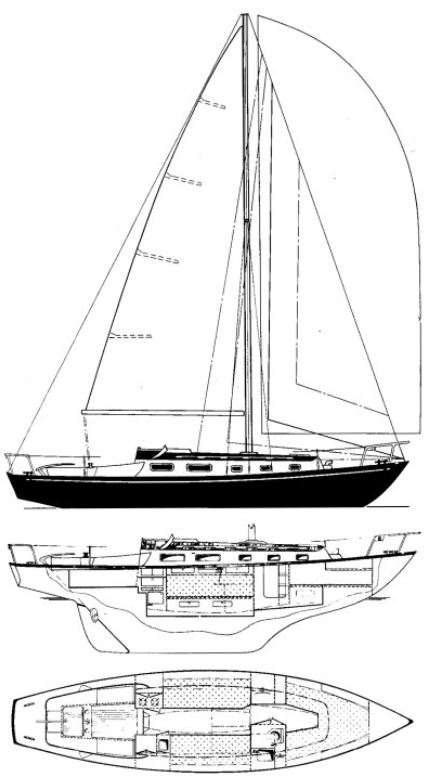

Vindo 30
Description
The Vindö 30 (note: commonly spelled "Vindö" with the appropriate umlaut in Swedish contexts) is one of the earliest and most iconic models from the Vindö yard (Nötesund Varv AB), located on Sweden's west coast near Orust. Founded in 1926 by Carl Andersson (a third-generation boatbuilder), the yard initially focused on wooden fishing boats and pilot vessels. It gained fame in the 1960s for high-quality small wooden leisure boats, transitioning to fiberglass (GRP) hulls around 1965 while retaining wood superstructures and interiors for a premium, traditional feel. The Vindö 30 was first built in 1963, initially in wood, with later versions (from the late 1960s onward) switching to GRP hulls for durability and lower maintenance. This marked a key milestone for the yard, expanding their reputation beyond local waters. Hundreds were produced until around 1975, when focus shifted to larger models like the Vindö 32, 40, 50, and beyond. The yard faced bankruptcies in the 1980s but influenced later builders (e.g., some molds went to other firms).
Construction Details
| Designer | Carl Andersson |
|---|---|
| Builder | Vindö yard (Nötesund Varv AB) |
| Length | 29.850 ft |
| LOA | 29.850 ft |
| LWL | 23.300 ft |
| Beam | 8.040 ft |
| Displacement | 7720 lb |
| Ballast | 3085 lb |
| Max Draft | 4.300 ft |
| Year Built | 1963 |
The standard boat dimensions
| i | 32.15 ft |
|---|---|
| j | 11.65 ft |
| p | 28.54 ft |
| e | 11.80 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 32.15 ft | 11.65 ft | 28.54 ft | 11.80 ft | - | - | - | - |
Sails
Vindo 30 - MAINSAIL
| Luff | * 28.54 ft - (8699 mm) |
|---|---|
| Foot | * 11.8 ft - (3597 mm) |
| Leech | * 30.25 ft - (9220 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 30.5 ft - (9296 mm) |
| Head (inches) | * 5.25 in - (133 mm) |
| Area | * 173.73 ft² |
| Edit in Calculator | |
Vindo 30 - JIBSAIL
| Luff | * 27.36 ft - (8339 mm) |
|---|---|
| Foot | * 15.79 ft - (4813 mm) |
| Leech | * 23.26 ft - (7090 mm) |
| Percentage LP | * 115.02 % |
| Length Perpendicular | * 13.4 ft - (4084 mm) |
| Deck Angle | * 12 ° |
| Area | * 183.34 ft² |
| Edit in Calculator | |
Vindo 30 - GENOA
| Luff | * 32.49 ft - (9903 mm) |
|---|---|
| Foot | * 19.12 ft - (5828 mm) |
| Leech | * 30.29 ft - (9232 mm) |
| Percentage LP | * 150.04 % |
| Length Perpendicular | * 17.48 ft - (5328 mm) |
| Deck Angle | * 4 ° |
| Area | * 283.93 ft² |
| Edit in Calculator | |
Vindo 30 - GENOA
| Luff | 31.5 ft - (9601 mm) |
|---|---|
| Foot | 17.75 ft - (5410 mm) |
| Leech | 29.5 ft - (8992 mm) |
| Percentage LP | * 140.26 % |
| Length Perpendicular | * 16.34 ft - (4980 mm) |
| Deck Angle | * 3.09 ° |
| Area | * 257.33 ft² |
| Edit in Calculator | |
Vindo 30 - ASYMMETRICAL
| Luff | * 32.49 ft - (9903 mm) |
|---|---|
| Foot | * 19.22 ft - (5858 mm) |
| Leech | * 29.89 ft - (9110 mm) |
| Perc LP | * 165 % |
| Area | * 468 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
