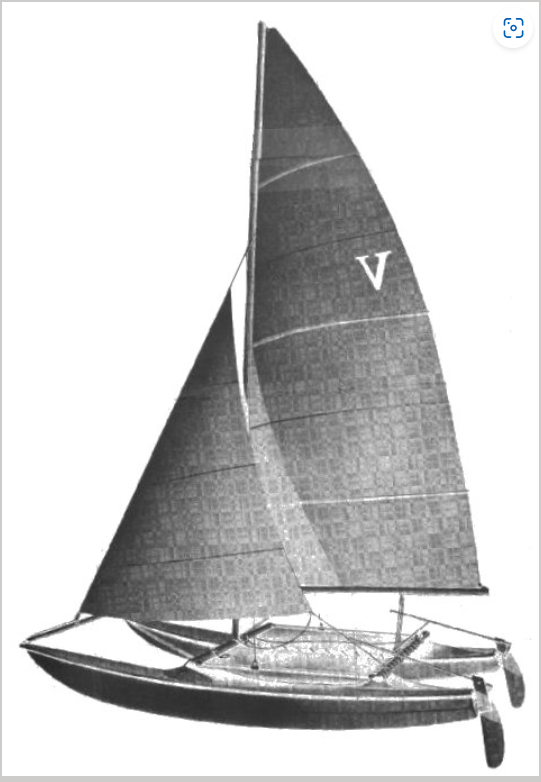

Venture Cat 15
Description
The VENTURE CAT 15 has banana shaped hulls, possibly influenced by the HOBIE 14 and 16 which were hugely popular at this time. Another version with less rocker was introduced in 1975 or so, though hull and sail dimension for both versions are similar.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| 23 | 22.25 |
| 10 | 8.25 |
| 24.55 | * 21.81 |
| 88 | * 77.55 |
| 24.76 | 22 |
| 4.5 | 4 |
| 118.76 | * 92.62 |
| Sail Type | MAINSAIL |
|---|---|
| 23 | 18.5 |
| 10 | 8.66 |
| 24.55 | * 18.97 |
| 88 | * 81 |
| 24.76 | 19.16 |
| 4.5 | * 4 |
| 118.76 | * 81.73 |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.25 ft - (4343 mm) |
| Foot | 4.75 ft - (1448 mm) |
| Leech | 13.91 ft - (4240 mm) |
| Length Perpendicular | * 4.61 ft - (1405 mm) |
| Area | * 32.88 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 13.5 ft - (4115 mm) |
| Foot | 4.6 ft - (1402 mm) |
| Leech | 12.83 ft - (3911 mm) |
| Length Perpendicular | * 4.37 ft - (1332 mm) |
| Area | * 29.5 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 14.167 ft - (4318 mm) |
| Foot | 4.625 ft - (1410 mm) |
| Leech | 13.83 ft - (4215 mm) |
| Length Perpendicular | * 4.5 ft - (1372 mm) |
| Area | * 31.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 12.08 ft - (3682 mm) |
| Foot | 9.16 ft - (2792 mm) |
| Leech | 11 ft - (3353 mm) |
| Length Perpendicular | * 7.98 ft - (2432 mm) |
| Area | * 48.17 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
