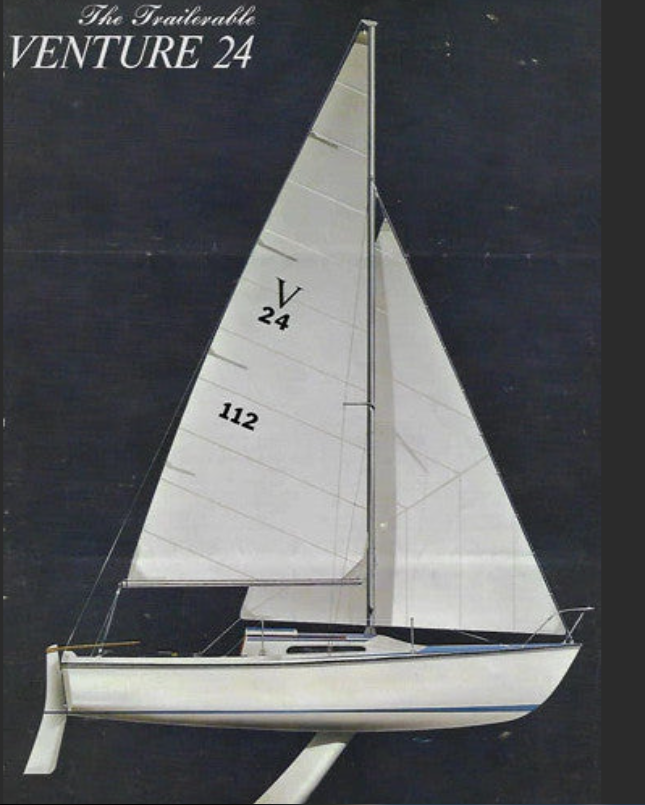

Venture 24
Description
The Venture 24 is a 24.58ft fractional sloop designed by Roger MacGregor and built in fiberglass by Macgregor Yacht Corp between 1969 and 1971. The Venture 24 is an ultralight sailboat which is a very high performer. It is reasonably stable / stiff and has a low righting capability if capsized.
Construction Details
| Designer | MacGregor |
|---|---|
| Builder | MacGregor Yacht Corporation |
| Length | 24.000 ft |
| LOA | 24.580 ft |
| LWL | 21.330 ft |
| Beam | 7.920 ft |
| Displacement | 2100 lb |
| Max Draft | 4.500 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | 22.08 ft |
|---|---|
| j | 9.16 ft |
| p | 25 ft |
| e | 11.08 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 22.08 ft | 9.16 ft | 25 ft | 11.08 ft | - | - | - | - |
Documents
Blueprints
Sails
Venture 24 - MAINSAIL
| Luff | 25 ft - (7620 mm) |
|---|---|
| Foot | 11.083 ft - (3378 mm) |
| Leech | * 26.98 ft - (8224 mm) |
| Tack Angle | * 88.99 ° |
| Diagonal | 27.167 ft - (8281 mm) |
| Head (inches) | 4 in - (102 mm) |
| Area | * 142.26 ft² |
| Edit in Calculator | |
Venture 24 - JIBSAIL
| Luff | 19.5 ft - (5944 mm) |
|---|---|
| Foot | 8.75 ft - (2667 mm) |
| Leech | 16.25 ft - (4953 mm) |
| Percentage LP | * 78.82 % |
| Length Perpendicular | * 7.22 ft - (2201 mm) |
| Deck Angle | * 11.86 ° |
| Area | * 70.4 ft² |
| Edit in Calculator | |
Venture 24 - GENOA
| Luff | 21.5 ft - (6553 mm) |
|---|---|
| Foot | 15.25 ft - (4648 mm) |
| Leech | 20.25 ft - (6172 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.74 ft - (4188 mm) |
| Deck Angle | * 3.21 ° |
| Area | * 147.67 ft² |
| Edit in Calculator | |
Venture 24 - GENOA
| Luff | 21.25 ft - (6477 mm) |
|---|---|
| Foot | 15.1 ft - (4602 mm) |
| Leech | 20.25 ft - (6172 mm) |
| Percentage LP | * 149.56 % |
| Length Perpendicular | * 13.7 ft - (4176 mm) |
| Deck Angle | * 2.3 ° |
| Area | * 145.6 ft² |
| Edit in Calculator | |
Venture 24 - GENOA
| Luff | * 22.71 ft - (6922 mm) |
|---|---|
| Foot | * 15.36 ft - (4682 mm) |
| Leech | * 20.97 ft - (6392 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 13.74 ft - (4188 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 156.01 ft² |
| Edit in Calculator | |
Venture 24 - DRIFTER
| Luff | * 22.71 ft - (6922 mm) |
|---|---|
| Foot | * 16.12 ft - (4913 mm) |
| Leech | * 19.82 ft - (6041 mm) |
| Perc LP | * 150 % |
| Length Perp | * 13.74 ft - (4188 mm) |
| Deck Angle | * 8.99 ° |
| Area | * 156.04 ft² |
| Edit in Calculator | |
Venture 24 - ASYMMETRICAL
| Luff | 23 ft - (7010 mm) |
|---|---|
| Foot | 15.25 ft - (4648 mm) |
| Leech | 21 ft - (6401 mm) |
| Perc LP | * 165 % |
| Area | * 263 ft² |
| Edit in Calculator | |
Venture 24 - STORMJIB
| Luff | * 13.15 ft - (4008 mm) |
|---|---|
| Foot | * 7.35 ft - (2240 mm) |
| Leech | * 9.94 ft - (3030 mm) |
| Perc LP | * 60.04 % |
| Length Perp | * 5.5 ft - (1676 mm) |
| Deck Angle | * 18.99 ° |
| Area | * 36.18 ft² |
| Edit in Calculator | |
