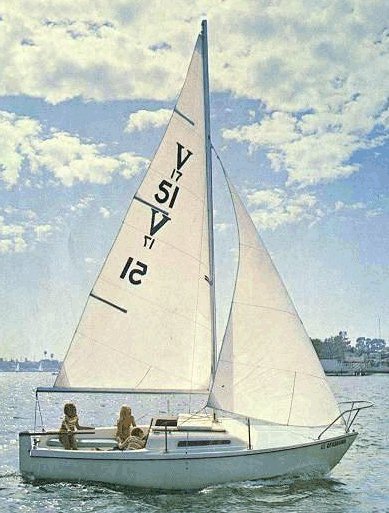

VENTURE 17
Description
The VENTURE 17 is a dinghy designed by MacGregor. This nimble dinghy is designed for responsive sailing and easy handling, featuring variable draft for versatility in different sailing conditions. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | MacGregor |
|---|---|
| Length | 17.000 ft |
| LOA | 17.330 ft |
| LWL | 15.000 ft |
| Beam | 6.330 ft |
| Displacement | 900 lb |
| Max Draft | 4.500 ft |
| Min Draft | 1.420 ft |
The standard boat dimensions
| i | 15.25 ft |
|---|---|
| j | 6.83 ft |
| p | 18.50 ft |
| e | 8.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 15.25 ft | 6.83 ft | 18.50 ft | 8.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 15.58 ft - (4749 mm) |
| Foot | 8.67 ft - (2643 mm) |
| Leech | 13.42 ft - (4090 mm) |
| Percentage LP | * 109.22 % |
| Length Perpendicular | * 7.46 ft - (2274 mm) |
| Deck Angle | * 6.54 ° |
| Area | * 58.09 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | 18.5 ft - (5639 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Leech-AftHdBd | * 20.39 ft - (6215 mm) |
| Tack Ang | * 90.84 ° |
| Diag (clew/head) | 20.58 ft - (6273 mm) |
| Head (inches) | 4 in |
| Area (no Roach) | * 83.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 15.58 ft - (4749 mm) |
| Foot | 11.33 ft - (3453 mm) |
| Leech | 14.75 ft - (4496 mm) |
| Percentage LP | * 149.34 % |
| Length Perpendicular | * 10.2 ft - (3109 mm) |
| Deck Angle | * 1.65 ° |
| Area | * 79.48 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 16 ft - (4877 mm) |
| Foot | 12 ft - (3658 mm) |
| Leech | 14.5 ft - (4420 mm) |
| Perc LP | * 165 |
| Area | * 144 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | 15.58 ft - (4749 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech | 14.5 ft - (4420 mm) |
| Perc LP | * 149.49 |
| Length Perp | * 10.21 |
| Deck Angle | * 3.24 ° |
| Area | * 79.56 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
