Tropic Bird
Description
19' beach cruiser 5' beam
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |

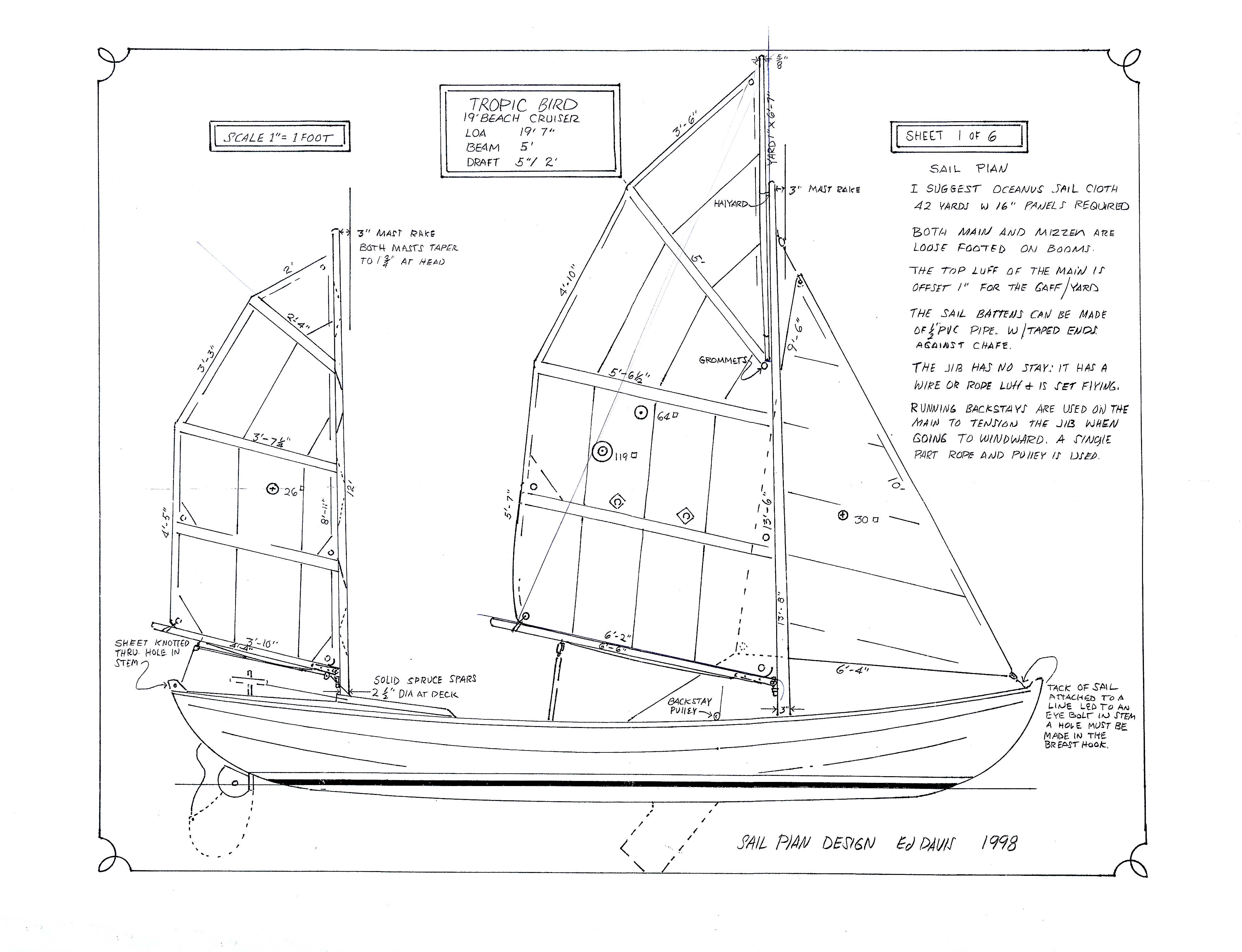

Blueprints
+
Images
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
Tropic Bird - MAINSAIL
| Luff | 13.5 ft - (4115 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | * 14.79 ft - (4508 mm) |
| Tack Angle | * 80.94 ° |
| Diagonal | 15 ft - (4572 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 61.92 ft² |
| Edit in Calculator | |
Tropic Bird - JIBSAIL
| Luff | 10 ft - (3048 mm) |
|---|---|
| Foot | 6.33 ft - (1929 mm) |
| Leech | 9.5 ft - (2896 mm) |
| Area | * 29.1 ft² |
| Edit in Calculator | |
Tropic Bird - MIZZEN
| Luff | 8.92 ft - (2719 mm) |
|---|---|
| Foot | 5.9 ft - (1798 mm) |
| Leech-AftHdBd | 9.36 ft - (2853 mm) |
| Tack Ang | * 74.11 ° |
| Diag (clew/head) | 9.25 ft - (2819 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area (no Roach) | * 26.57 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
