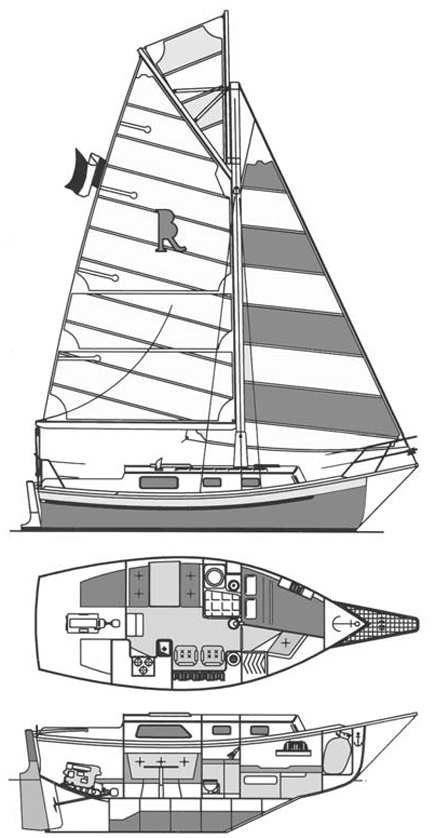

TOM THUMB (GAFF HEADED)
Description
The TOM THUMB (GAFF HEADED) is a sailboat. Her generous sail plan delivers excellent light-air performance.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 30.000 ft |
The standard boat dimensions
| i | 31.25 ft |
|---|---|
| j | 13 ft |
| p | 18.90 ft |
| e | 14.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 31.25 ft | 13 ft | 18.90 ft | 14.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | JIBSAIL |
|---|---|
| Luff | 30.67 ft - (9348 mm) |
| Foot | 16.9 ft - (5151 mm) |
| Leech | 25.33 ft - (7721 mm) |
| Length Perpendicular | 13.96 ft - (4255 mm) |
| Area | 214.01 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
