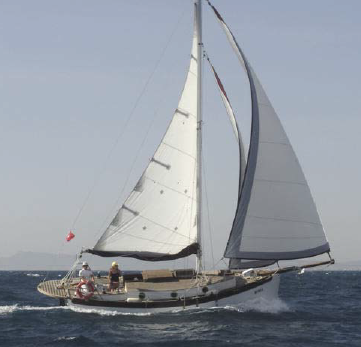

TOM THUMB
Description
The TOM THUMB is a small sailboat. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 30.000 ft |
| LOA | 23.830 ft |
| LWL | 22.000 ft |
| Beam | 9.500 ft |
| Displacement | 7900 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 34.60 ft |
|---|---|
| j | 11.20 ft |
| p | 32 ft |
| e | 11.40 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.60 ft | 11.20 ft | 32 ft | 11.40 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32 ft - (9754 mm) |
| Foot | * 11.4 ft - (3475 mm) |
| Leech-AftHdBd | * 33.45 ft - (10196 mm) |
| Tack Ang | * 88.04 ° |
| Diag (clew/head) | * 33.6 ft - (10241 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | 182.19 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.55 ft - (10531 mm) |
| Foot | * 18.11 ft - (5520 mm) |
| Leech | * 32.47 ft - (9897 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.8 ft - (5121 mm) |
| Deck Angle | * 4 ° |
| Area | 290.21 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.09 ft - (8867 mm) |
| Foot | * 14.86 ft - (4529 mm) |
| Leech | * 25.21 ft - (7684 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.88 ft - (3926 mm) |
| Deck Angle | * 12 ° |
| Area | 187.29 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Luff | * 34.55 ft - (10531 mm) |
| MidGirth | * 20.16 ft - (6145 mm) |
| Foot | * 20.16 ft - (6145 mm) |
| Perc LP | * 180 |
| Area | 592.05 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
