Tayana 48
Description

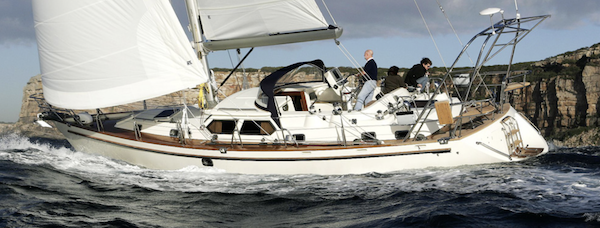

The Tayana 48 was designed by Robert Perry with deck and interior redesign by Rob Ladd in the early 2000s, built by Ta Yang Yacht Building Co. in Taiwan with production beginning in 1992 and continuing to present day with over 200 units completed. This 48-foot cutter-rigged sailboat evolved from the Tayana 47 and features hand-laminated fiberglass construction with PVC foam core, cast iron ballast glassed into a modified fin keel, and skeg-mounted rudder configuration, displacing 35,000 pounds with 11,675 pounds of ballast and drawing 6 feet (5.33 feet shoal option available). Available in both standard center cockpit and deck salon (DS) configurations, the vessel offers a waterline length of 40.25 feet, beam of 14.5 feet.
Construction Details
| Designer | Robert Ladd |
|---|---|
| Builder | Ta Yang Yacht Building Co. |
| Length | 48.000 ft |
| LOA | 48.000 ft |
| LWL | 40.250 ft |
| Beam | 14.500 ft |
| Displacement | 35000 lb |
| Ballast | 11675 lb |
| Max Draft | 6.000 ft |
| Year Built | 1992 |
The standard boat dimensions
| i | 62 ft |
|---|---|
| j | 18.67 ft |
| p | 55.50 ft |
| e | 17.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 62 ft | 18.67 ft | 55.50 ft | 17.50 ft | - | - | - | - |
Sails
Tayana 48 - MAINSAIL
| Luff | * 55.5 ft - (16916 mm) |
|---|---|
| Foot | * 17.5 ft - (5334 mm) |
| Leech | * 57.34 ft - (17477 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 57.61 ft - (17560 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 497.42 ft² |
| Edit in Calculator |
Tayana 48 - JIBSAIL
| Luff | * 51.8 ft - (15789 mm) |
|---|---|
| Foot | * 24.49 ft - (7465 mm) |
| Leech | * 45.41 ft - (13841 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 21.47 ft - (6544 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 556.02 ft² |
| Edit in Calculator |
Tayana 48 - GENOA
| Luff | * 61.51 ft - (18748 mm) |
|---|---|
| Foot | * 29.94 ft - (9126 mm) |
| Leech | * 58.1 ft - (17709 mm) |
| Percentage LP | * 149.97 % |
| Length Perpendicular | * 28 ft - (8534 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 861.14 ft² |
| Edit in Calculator |
Tayana 48 - ASYMMETRICAL
| Luff | 63 ft - (19202 mm) |
|---|---|
| Foot | 31 ft - (9449 mm) |
| Leech | 58.5 ft - (17831 mm) |
| Perc LP | * 165 % |
| Area | * 1465 ft² |
| Edit in Calculator |
Tayana 48 - STORMTRYSAIL
| Luff | * 20.16 ft - (6145 mm) |
|---|---|
| Foot | * 18.54 ft - (5651 mm) |
| Leech | * 16.8 ft - (5121 mm) |
| Length Perp | * 16.8 ft - (5121 mm) |
| Tack Angle | * -25 ° |
| Area | * 146 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
