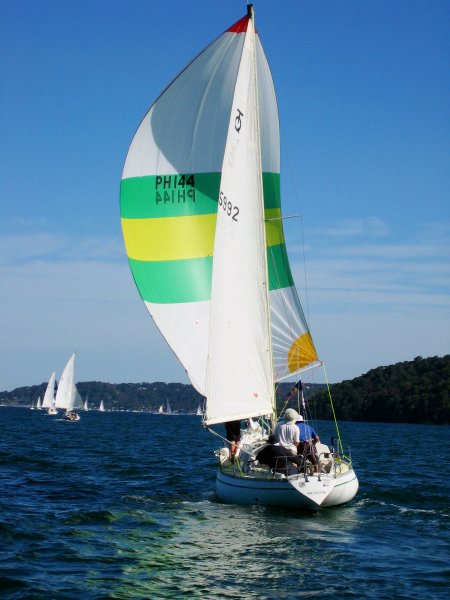

Tasman 26
Description
The Tasman 26 is a compact cruiser designed by Joe Adams. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Joe Adams |
|---|---|
| Length | 26.000 ft |
| LOA | 25.980 ft |
| LWL | 21.680 ft |
| Beam | 9.480 ft |
| Displacement | 4497 lb |
| Max Draft | 4.490 ft |
The standard boat dimensions
| i | 32.97 ft |
|---|---|
| j | 10.01 ft |
| p | 29.53 ft |
| e | 10.17 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 32.97 ft | 10.01 ft | 29.53 ft | 10.17 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29.53 ft - (9001 mm) |
| Foot | * 10.17 ft - (3100 mm) |
| Leech-AftHdBd | * 30.68 ft - (9351 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 30.89 ft - (9415 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 154.85 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 32.75 ft - (9982 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 31.083 ft - (9474 mm) |
| Percentage LP | * 150.01 % |
| Length Perpendicular | * 15.01 ft - (4575 mm) |
| Deck Angle | * 3.35 ° |
| Area | * 245.84 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 32.5 ft - (9906 mm) |
| Foot | 14.42 ft - (4395 mm) |
| Leech | 30.67 ft - (9348 mm) |
| Percentage LP | * 135.22 % |
| Length Perpendicular | * 13.53 ft - (4124 mm) |
| Deck Angle | * 3.31 ° |
| Area | * 219.92 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 31.75 ft - (9677 mm) |
| Foot | 11.5 ft - (3505 mm) |
| Leech | 28.75 ft - (8763 mm) |
| Percentage LP | * 103.74 % |
| Length Perpendicular | * 10.38 ft - (3164 mm) |
| Deck Angle | * 8.56 ° |
| Area | * 164.85 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 32.73 |
| MidGirth | * 18.01 ft - (5489 mm) |
| Foot | * 18.01 ft - (5489 mm) |
| Perc LP | * 180 |
| Area | * 501 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
