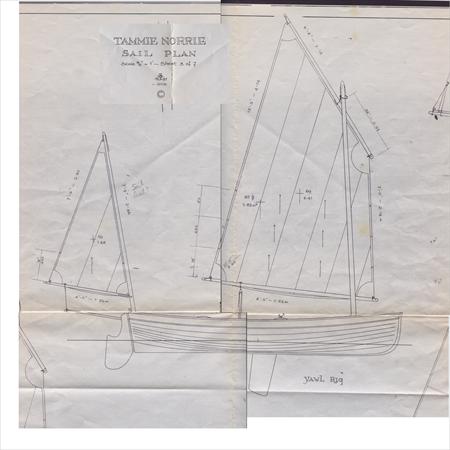

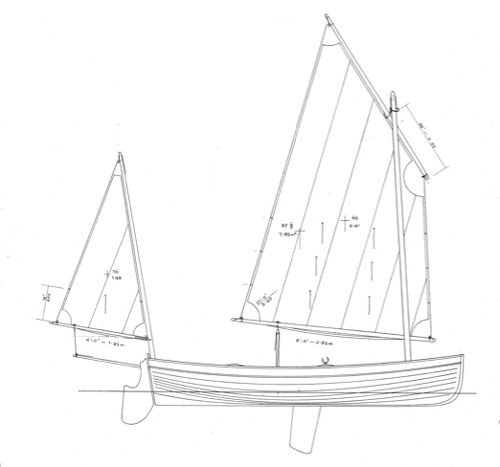

Tammie Norrie (Yawl Rig)
Description
The Tammie Norrie is a compact, versatile glued-lapstrake clinker dinghy designed by Scottish naval architect Iain Oughtred, inspired by traditional Shetland fishing boats. Plans have been available since the 1980s through WoodenBoat and other outlets, with hundreds built by amateurs and professionals worldwide—often as tenders, daysailers, or rowing boats. The yawl rig variant offers balanced sail-handling for light-air performance and stability, with a mizzen mast aft for easy reefing and solo sailing. Featuring a centerboard (daggerboard in some builds) for adjustable draft and chine runners for beaching, it's lightweight and portable, excelling in shallow waters or trailering. Construction uses 4-6mm marine plywood with epoxy, requiring basic to intermediate woodworking skills; no lofting needed. The open cockpit seats 4-5 for picnics or short sails, with thwarts for rowing (up to 2 oarsmen).
Construction Details
| Designer | Iain Oughtred |
|---|---|
| Length | 13.500 ft |
| LOA | 13.500 ft |
| LWL | 11.000 ft |
| Beam | 4.500 ft |
| Displacement | 170 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.833 ft |
| Year Built | 1985 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Tammie Norrie (Yawl Rig) - LEG-O-MUTTON
| Luff | 7.75 ft - (2362 mm) |
|---|---|
| Foot | 4 ft - (1219 mm) |
| Leech | * 7.33 ft - (2234 mm) |
| Tack Angle | * 71.36 ° |
| Diag (clew/head) | 7.5 ft - (2286 mm) |
| Head (Inches) | * 3.5 |
| Area | * 15.57 ft² |
| Edit in Calculator | |
Tammie Norrie (Yawl Rig) - STANDING LUGSAIL
| Luff | 7 ft - (2134 mm) |
|---|---|
| Foot | 8.25 ft - (2515 mm) |
| Leech | 13.25 ft - (4039 mm) |
| Tack Angle | * 81.5 ° |
| Diag (clew/throat) | 10 ft - (3048 mm) |
| Head | 6.67 ft - (2033 mm) |
| Area | 69 ft² |
| Edit in Calculator | |
Tammie Norrie (Yawl Rig) - STANDING LUGSAIL
| Luff | 7.054 ft - (2150 mm) |
|---|---|
| Foot | 9.514 ft - (2900 mm) |
| Leech | 14.501 ft - (4420 mm) |
| Tack Angle | * 86.5 ° |
| Diag (clew/throat) | 11.493 ft - (3503 mm) |
| Head | 8.76 ft - (2670 mm) |
| Area | * 83.83 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
