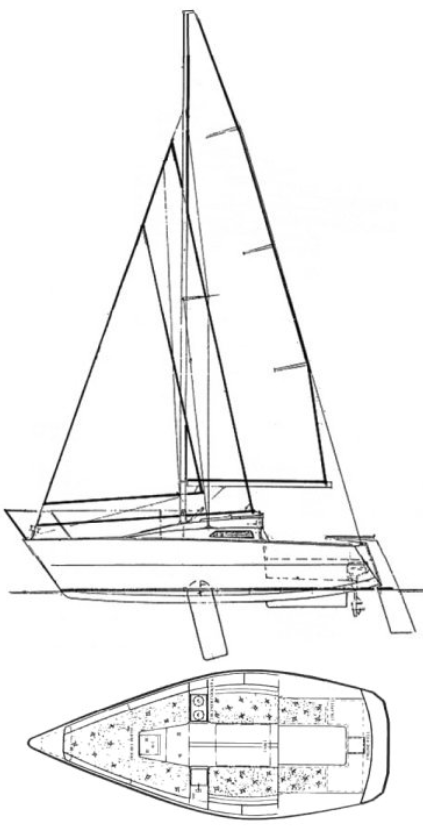

Swift 18
Description
The Swift 18 is a dinghy. This nimble dinghy is designed for responsive sailing and easy handling, making her ideal for exploring shallow waters and protected anchorages. Perfect for day sailing, club racing, or teaching young sailors the ropes.
Construction Details
| Designer | Unknown |
|---|---|
| Length | 18.000 ft |
| LOA | 18.000 ft |
| LWL | 16.330 ft |
| Beam | 7.920 ft |
| Displacement | 1450 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.750 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 23.75 ft |
| e | 7.08 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 23.75 ft | 7.08 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 23.75 ft - (7239 mm) |
| Foot | * 7.08 ft - (2158 mm) |
| Leech-AftHdBd | * 24.38 ft - (7431 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 24.54 ft - (7480 mm) |
| Head (inches) | * 3.5 in |
| Area (no Roach) | * 87 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
