Sun Odyssey 37
Description

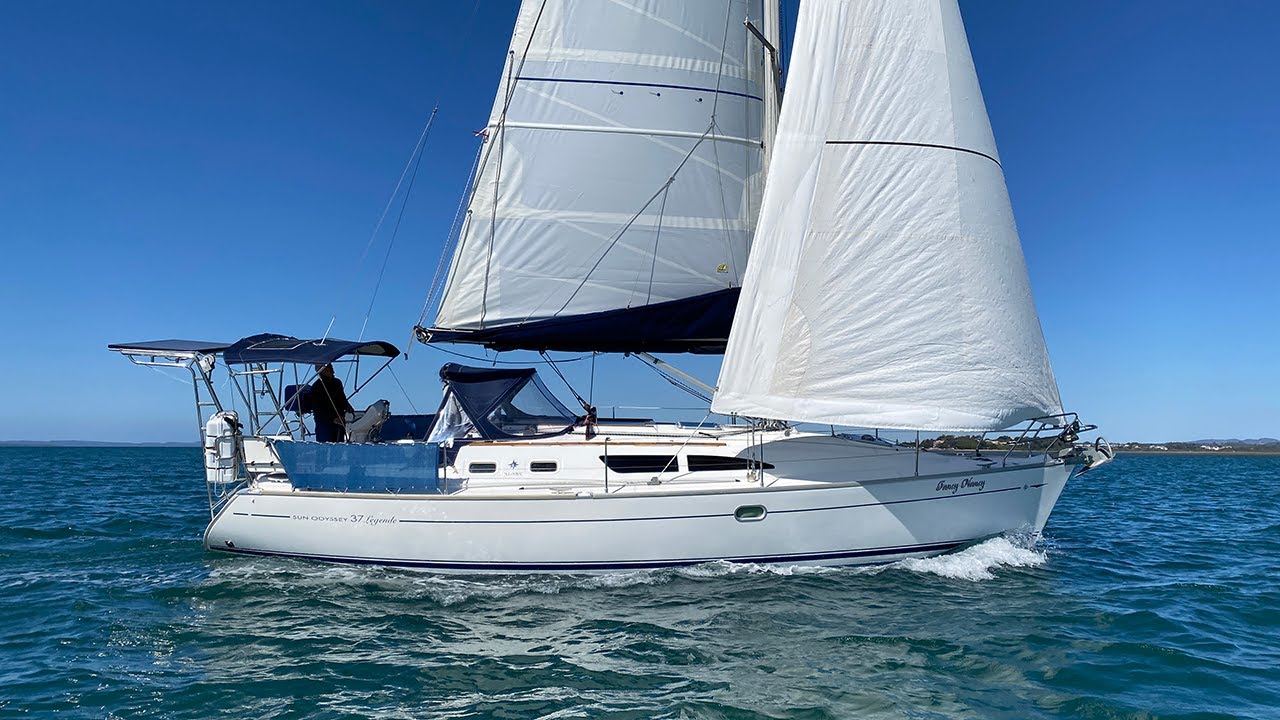

The Sun Odyssey 37 is a sailboat designed by Jeanneau. Her generous sail plan delivers excellent light-air performance.
The standard boat dimensions
| i | 44.75 ft |
|---|---|
| j | 12.50 ft |
| p | 39 ft |
| e | 13.83 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 44.75 ft | 12.50 ft | 39 ft | 13.83 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 44.14 ft - (13454 mm) |
| Foot | * 20.62 ft - (6285 mm) |
| Leech | * 40.61 ft - (12378 mm) |
| Perc LP | * 165 |
| Area | * 683 ft² |
| Sail Type | DRIFTER |
|---|---|
| Luff | * 44.14 ft - (13454 mm) |
| Foot | * 20.62 ft - (6285 mm) |
| Leech | * 40.2 ft - (12253 mm) |
| Perc LP | * 150 |
| Length Perp | * 18.75 |
| Deck Angle | * 8.98 ° |
| Area | * 413.81 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 44 ft - (13411 mm) |
| Foot | 18.16 ft - (5535 mm) |
| Leech | 41 ft - (12497 mm) |
| Percentage LP | * 135.2 % |
| Length Perpendicular | * 16.9 ft - (5151 mm) |
| Deck Angle | * 5.86 ° |
| Area | * 371.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 43 ft - (13106 mm) |
| Foot | 12.5 ft - (3810 mm) |
| Leech | 40.5 ft - (12344 mm) |
| Percentage LP | * 110.63 % |
| Length Perpendicular | * 11.76 ft - (3584 mm) |
| Deck Angle | * 5.27 ° |
| Area | * 252.78 ft² |
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 39 ft - (11887 mm) |
| Foot | * 13.83 ft - (4215 mm) |
| Leech-AftHdBd | * 40.64 ft - (12387 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 40.92 ft - (12472 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 277.97 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 25.55 ft - (7788 mm) |
| Foot | * 9.11 ft - (2777 mm) |
| Leech | * 21.72 ft - (6620 mm) |
| Perc LP | * 60 |
| Length Perp | * 7.5 |
| Deck Angle | * 18.95 ° |
| Area | * 95.85 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
