Sprinta Sport 23
Description

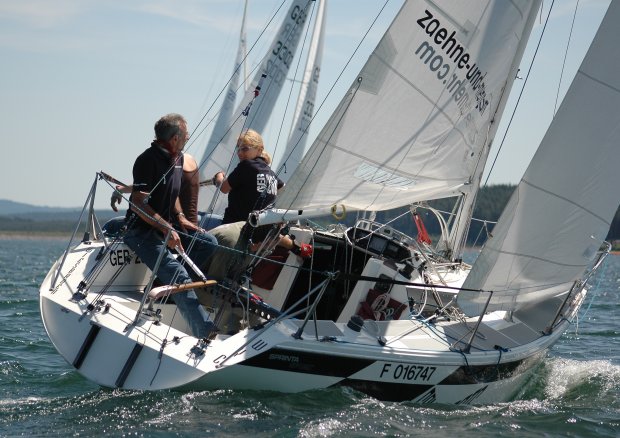

The SPRINTA SPORT 23 is a small sailboat designed by Dehler Yachts. She strikes a balance between performance and comfort, Her generous sail plan delivers excellent light-air performance. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | Dehler Yachts |
|---|---|
| Length | 23.000 ft |
| LOA | 22.970 ft |
| LWL | 19.030 ft |
| Beam | 7.870 ft |
| Displacement | 2425 lb |
| Max Draft | 4.420 ft |
The standard boat dimensions
| i | 25.33 ft |
|---|---|
| j | 8.20 ft |
| p | 27.23 ft |
| e | 9.51 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.33 ft | 8.20 ft | 27.23 ft | 9.51 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27.23 ft - (8300 mm) |
| Foot | * 9.51 ft - (2899 mm) |
| Leech-AftHdBd | * 28.32 ft - (8632 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 28.53 ft - (8696 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 133.82 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 24.5 ft - (7468 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Leech | 22.75 ft - (6934 mm) |
| Percentage LP | * 99.02 % |
| Length Perpendicular | * 8.12 ft - (2475 mm) |
| Deck Angle | * 3.87 ° |
| Area | * 99.52 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 21.3 ft - (6492 mm) |
| Foot | * 10.88 ft - (3316 mm) |
| Leech | * 18.46 ft - (5627 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 9.43 ft - (2874 mm) |
| Deck Angle | * 12 ° |
| Area | * 100.41 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 25.33 ft - (7721 mm) |
| Foot | 13.5 ft - (4115 mm) |
| Leech | 24.083 ft - (7340 mm) |
| Percentage LP | * 153.78 % |
| Length Perpendicular | * 12.61 ft - (3844 mm) |
| Deck Angle | * 2.95 ° |
| Area | * 159.74 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.29 ft - (7708 mm) |
| Foot | * 13.26 ft - (4042 mm) |
| Leech | * 23.77 ft - (7245 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12.3 ft - (3749 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 155.55 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 25.29 ft - (7708 mm) |
| MidGirth | * 14.76 ft - (4499 mm) |
| Foot | * 14.76 ft - (4499 mm) |
| Perc LP | * 180 % |
| Area | * 317 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
