Spindrift 12 (Also 12c For Centerboard)
Description
The Spindrift 12, designed by Graham Byrnes of B&B Yacht Designs, is the largest model in the Spindrift series of lightweight, stitch-and-glue plywood sailing dinghies (9, 10, 11, and 12 feet). The centerboard variant is the standard configuration for the Spindrift 12, as opposed to the daggerboard used in smaller models like the Spindrift 11. The Spindrift 12 is a versatile daysailer and yacht tender, offering a spacious cockpit for family outings (up to 4 people) or gear-heavy trips, with excellent sailing, rowing, and motoring capabilities. It prioritizes stability and ease of use, making it ideal for lakes, bays, and coastal waters. Unlike the smaller Spindrifts (9N, 10N, 11N), it does not offer a nesting version due to its size. With over 1,500 Spindrift plan sets sold globally, the Spindrift 12 is popular among DIY builders and yacht clubs for its quick rigging (~7-10 minutes), affordability, and performance in winds up to 20 knots.
Construction Details
| Designer | B&B Yacht Designs |
|---|---|
| Length | 12.000 ft |
| LOA | 13.330 ft |
| LWL | 13.830 ft |
| Beam | 5.180 ft |
| Max Draft | 3.000 ft |
| Min Draft | 0.330 ft |
| Notes | The B&B web site shows the same sail for the 11 and the 12. I believe that the 12 has a 14.5-foot luff instead of 13.937-foot luff of the 11. |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 14.50 ft |
| e | 8.50 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 14.50 ft | 8.50 ft | - | - | - | - |

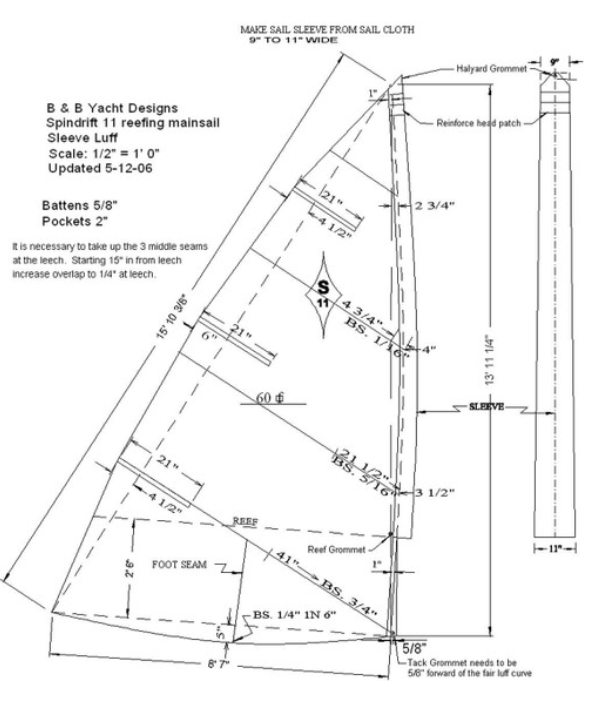

Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | 14.75 ft - (4496 mm) |
| Foot | 8.16 ft - (2487 mm) |
| Leech | * 16.47 ft - (5020 mm) |
| Tack Angle | * 88.03 ° |
| Diagonal | * 16.61 ft - (5063 mm) |
| Head (inches) | * 3.5 in - (89 mm) |
| Area | 60.09 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 10.66 ft - (3249 mm) |
| Foot | 5.58 ft - (1701 mm) |
| Leech | 9.33 ft - (2844 mm) |
| Length Perpendicular | 4.88 ft - (1487 mm) |
| Area | 26.01 ft² |
