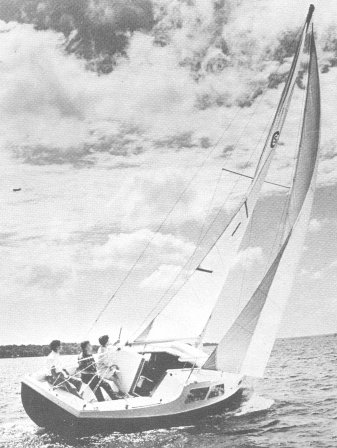

South Coast 25
Description
L.W.L. 20'-6" BEAM 8'-0" DRAFT 3'-6"
Construction Details
| Designer | Warren Metcalf |
|---|---|
| Length | 25.500 ft |
| LOA | 25.000 ft |
| LWL | 20.500 ft |
| Beam | 7.500 ft |
| Displacement | 4200 lb |
| Max Draft | 3.500 ft |
The standard boat dimensions
| i | 30.67 ft |
|---|---|
| j | 9 ft |
| p | 27 ft |
| e | 12 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 30.67 ft | 9 ft | 27 ft | 12 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 12 ft - (3658 mm) |
| Leech-AftHdBd | * 28.91 ft - (8812 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.16 ft - (8888 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 167.11 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 28.5 ft - (8687 mm) |
| Foot | 12.83 ft - (3911 mm) |
| Leech | 22.83 ft - (6959 mm) |
| Percentage LP | * 111.56 % |
| Length Perpendicular | * 10.04 ft - (3060 mm) |
| Deck Angle | * 22.19 ° |
| Area | * 143 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 30.5 ft - (9296 mm) |
| Foot | 16 ft - (4877 mm) |
| Leech | 28.67 ft - (8739 mm) |
| Percentage LP | * 164.89 % |
| Length Perpendicular | * 14.84 ft - (4523 mm) |
| Deck Angle | * 5.56 ° |
| Area | * 226.37 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 30.37 ft - (9257 mm) |
| MidGirth | * 16.2 ft - (4938 mm) |
| Foot | * 16.2 ft - (4938 mm) |
| Perc LP | * 180 % |
| Area | * 418 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
