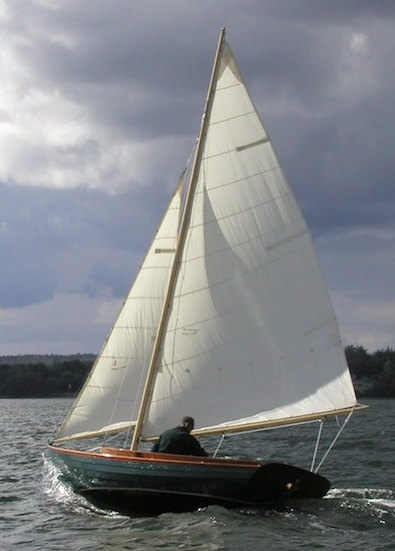

Somes Sound 12.5
Description
The Somes Sound 12½ is a 12'6" glued-lapstrake wooden skiff designed by John Brooks of Brooks Boats Designs in Brooklin, Maine. This elegant small craft combines traditional New England workboat aesthetics with modern epoxy-glued construction, making it suitable for both rowing and sailing. It’s a popular choice for amateur builders due to its manageable size, detailed plans, and Brooks’ emphasis on accessible construction techniques.
Construction Details
| Designer | John Brooks |
|---|---|
| Length | 16.000 ft |
| LOA | 15.750 ft |
| LWL | 12.500 ft |
| Beam | 6.083 ft |
| Displacement | 1389 lb |
| Ballast | 600 lb |
| Max Draft | 4.083 ft |
| Min Draft | 1.500 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 18.67 ft |
| e | 10.25 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | 18.67 ft | 10.25 ft | - | - | - | - |
Blueprints
Sails
Somes Sound 12.5 - MAINSAIL
| Luff | 18.67 ft - (5691 mm) |
|---|---|
| Foot | 10.25 ft - (3124 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Tack Angle | * 88 ° |
| Diagonal | 19.5 ft - (5944 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 99.059 ft² |
| Comments | One reef 40" up from foot, 3 leech battens |
| Edit in Calculator |
Somes Sound 12.5 - JIBSAIL
| Luff | 14.25 ft - (4343 mm) |
|---|---|
| Foot | 5.25 ft - (1600 mm) |
| Leech | 12.25 ft - (3734 mm) |
| Area | * 31.52 ft² |
| Edit in Calculator |
Somes Sound 12.5 - GAFF MAIN
| Luff | 10.5 ft - (3200 mm) |
|---|---|
| Foot | 10.25 ft - (3124 mm) |
| Leech | 17.167 ft - (5233 mm) |
| Tack Angle | * 79.36 ° |
| Diag (clew/throat) | 13.25 ft - (4039 mm) |
| Head | 7.25 ft - (2210 mm) |
| Area | * 97.94 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
