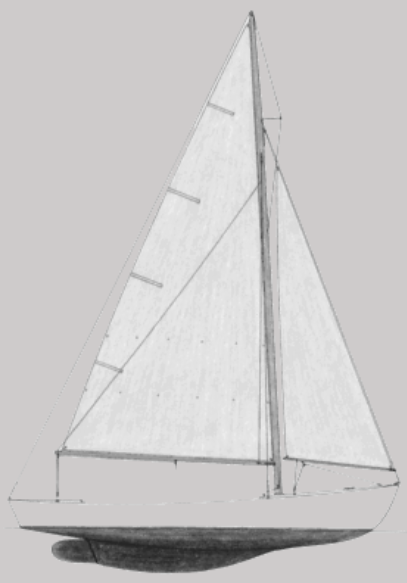

Small Point One-Design class
Description
The Small Point One-Design is a classic racing dinghy designed by W. Starling Burgess and first built in 1935. This nimble vessel represents nearly 90 years of continuous racing heritage, with 37 boats built over its production history. The class remains actively raced at Small Point Yacht Club in Maine, where these boats continue delivering the responsive sailing and competitive racing that made them legendary.
Construction Details
| Designer | W. Starling Burgess |
|---|---|
| Builder | Brewers Boatyard (USA) |
| Length | 19.000 ft |
| LOA | 19.700 ft |
| LWL | 17.580 ft |
| Beam | 6.000 ft |
| Displacement | 1375 lb |
| Ballast | 500 lb |
| Max Draft | 2.250 ft |
| Year Built | 1935 |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Sails
Small Point One-Design class - MAINSAIL
| Luff | 21.75 ft - (6629 mm) |
|---|---|
| Foot | 10.5 ft - (3200 mm) |
| Leech | * 23.28 ft - (7096 mm) |
| Tack Angle | * 86.1 ° |
| Diagonal | 23.5 ft - (7163 mm) |
| Head (inches) | 4.5 in - (114 mm) |
| Area | * 117.47 ft² |
| Edit in Calculator |
Small Point One-Design class - JIBSAIL
| Luff | 16.66 ft - (5078 mm) |
|---|---|
| Foot | 6.66 ft - (2030 mm) |
| Leech | 16.66 ft - (5078 mm) |
| Area | * 54.36 ft² |
| Edit in Calculator |
Small Point One-Design class - SPINNAKER
| Stays | 17.5 ft - (5334 mm) |
|---|---|
| MidGirth | 12.67 ft - (3862 mm) |
| Foot | 13 ft - (3962 mm) |
| Area | * 193 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
