Small
Description
The Small is a traditional style dayboat designed by Antonio Dias, originally created for Jenny Bennett as part of his book "Designer & Client." This versatile design can be built at either 13 or 14 feet, offering flexibility for different sailing preferences and crew sizes.
Construction Details
| Designer | Antonio Dias |
|---|---|
| Builder | Home Built |
| Length | 13.000 ft |
| LOA | 13.000 ft |
| LWL | 12.875 ft |
| Beam | 5.896 ft |
| Displacement | 175 lb |
| Max Draft | 30.000 ft |
| Min Draft | 0.580 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents

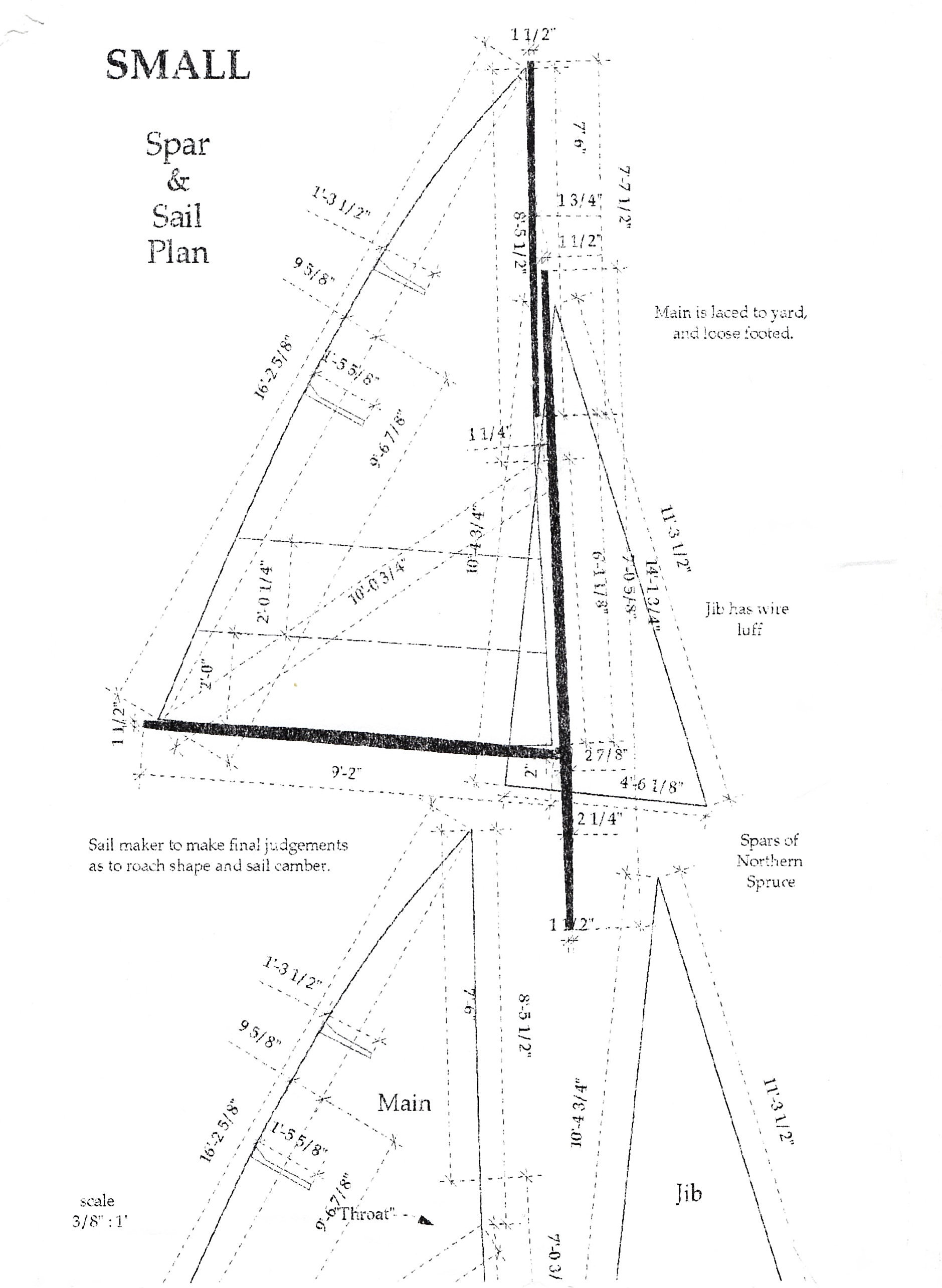

Sails
Small - JIBSAIL
| Luff | 8.5 ft - (2591 mm) |
|---|---|
| Foot | 4 ft - (1219 mm) |
| Leech | 7.5 ft - (2286 mm) |
| Length Perpendicular | * 3.53 ft - (1076 mm) |
| Area | * 15 ft² |
| Edit in Calculator |
Small - JIBSAIL
| Luff | 11.25 ft - (3429 mm) |
|---|---|
| Foot | 4.5 ft - (1372 mm) |
| Leech | 10.42 ft - (3176 mm) |
| Length Perpendicular | * 4.17 ft - (1271 mm) |
| Area | * 23.44 ft² |
| Edit in Calculator |
Small - STANDING LUGSAIL
| Luff | 4.8 ft - (1463 mm) |
|---|---|
| Foot | 9 ft - (2743 mm) |
| Leech | 14 ft - (4267 mm) |
| Tack Angle | * 91.77 ° |
| Diag (clew/throat) | 10.33 ft - (3149 mm) |
| Head | 9 ft - (2743 mm) |
| Area | * 68.03 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
