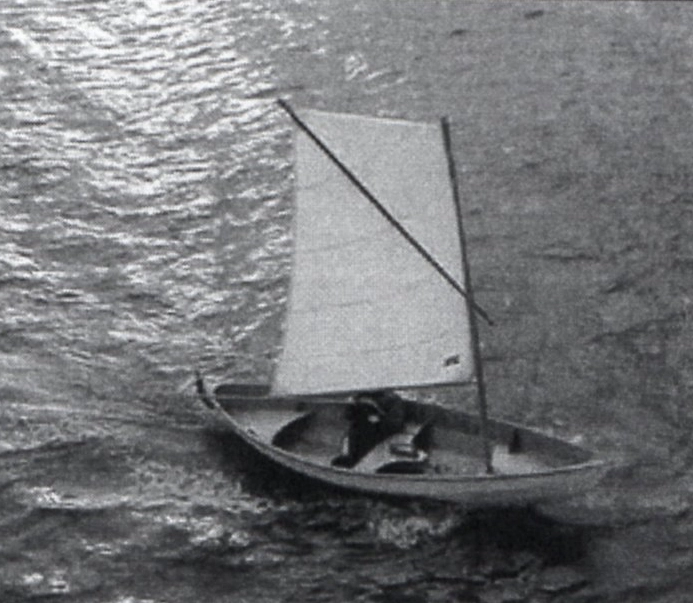

Skerry 15 (Spritsail Option)
Description
The Skerry 15 is Chesapeake Light Craft's flagship small sailboat design, inspired by traditional Norwegian working boats but adapted for modern recreational sailing and amateur construction. This 15-foot lapstrake-planked sailboat combines classic aesthetics with contemporary performance and buildability.
Construction Details
| Designer | John C. Harris (Chesapeake Light Craft) |
|---|---|
| Builder | Home Built |
| Length | 15.000 ft |
| LOA | 15.000 ft |
| LWL | 13.500 ft |
| Beam | 5.250 ft |
| Displacement | 400 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.670 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - | - |
Documents
Sails
Skerry 15 (Spritsail Option) - SPRIT
| Luff | 8 ft - (2438 mm) |
|---|---|
| Foot | 6.375 ft - (1943 mm) |
| Leech | 10.33 ft - (3149 mm) |
| Tack Angle | * 85.49 ° |
| Diag (clew/throat) | 9.83 ft - (2996 mm) |
| Head | 6.167 ft - (1880 mm) |
| Area | * 54.91 ft² |
| Edit in Calculator |
Skerry 15 (Spritsail Option) - SPRIT
| Luff | 8 ft - (2438 mm) |
|---|---|
| Foot | 7.313 ft - (2229 mm) |
| Leech | 11.729 ft - (3575 mm) |
| Tack Angle | * 82.03 ° |
| Diag (clew/throat) | 10.063 ft - (3067 mm) |
| Head | 6.396 ft - (1950 mm) |
| Area | * 61.13 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
