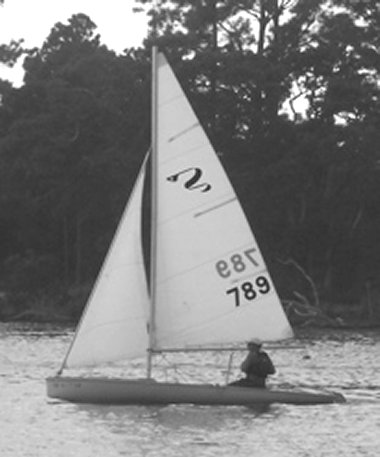

Sidewinder
Description
190 lbs. weight 4'6" Beam 6"-3'6" Draft
Construction Details
| Designer | Macal-pine-Downie and Gibbs |
|---|---|
| Length | 15.500 ft |
| LOA | 15.500 ft |
| LWL | 14.330 ft |
| Beam | 4.500 ft |
| Displacement | 175 lb |
| Max Draft | 3.000 ft |
| Min Draft | 0.420 ft |
The standard boat dimensions
| i | 12.50 ft |
|---|---|
| j | 4.75 ft |
| p | 16 ft |
| e | 8.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 12.50 ft | 4.75 ft | 16 ft | 8.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 16 ft - (4877 mm) |
| Foot | 8.33 ft - (2539 mm) |
| Leech-AftHdBd | * 16.99 ft - (5179 mm) |
| Tack Ang | * 83.74 ° |
| Diag (clew/head) | 17.214 ft - (5247 mm) |
| Head (inches) | 4.5 in |
| Area (no Roach) | * 68.81 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 12.5 ft - (3810 mm) |
| Foot | 6.83 ft - (2082 mm) |
| Leech | 11 ft - (3353 mm) |
| Percentage LP | * 126.11 % |
| Length Perpendicular | * 5.99 ft - (1826 mm) |
| Deck Angle | * 7.86 ° |
| Area | * 37.46 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | 13 ft - (3962 mm) |
| MidGirth | 8.75 ft - (2667 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Perc LP | * 180 % |
| Area | * 97 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
