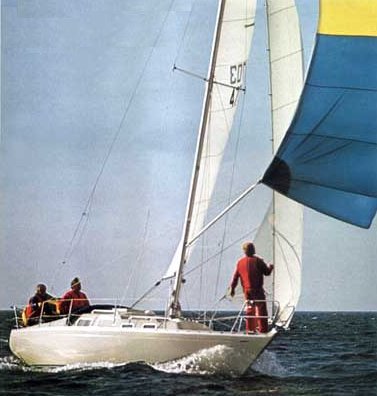

Shipman 28
Description
The Shipman 28 is a compact cruiser designed by Olle Enderlein. Her substantial displacement provides a comfortable, sea-kindly motion, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Olle Enderlein |
|---|---|
| Length | 28.000 ft |
| LOA | 29.060 ft |
| LWL | 21.000 ft |
| Beam | 8.530 ft |
| Displacement | 6614 lb |
| Max Draft | 5.090 ft |
The standard boat dimensions
| i | 35.10 ft |
|---|---|
| j | 10.79 ft |
| p | 29.53 ft |
| e | 10.17 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 35.10 ft | 10.79 ft | 29.53 ft | 10.17 ft | - | - | - | - |
Sails
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 29.53 ft - (9001 mm) |
| Foot | * 10.17 ft - (3100 mm) |
| Leech | * 30.68 ft - (9351 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 30.89 ft - (9415 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 154.85 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.38 ft - (8955 mm) |
| Foot | * 14.2 ft - (4328 mm) |
| Leech | * 25.68 ft - (7827 mm) |
| Percentage LP | * 115.01 % |
| Length Perpendicular | * 12.41 ft - (3783 mm) |
| Deck Angle | * 11.98 ° |
| Area | * 182.33 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.88 ft - (10631 mm) |
| Foot | * 17.34 ft - (5285 mm) |
| Leech | * 32.9 ft - (10028 mm) |
| Percentage LP | * 149.95 % |
| Length Perpendicular | * 16.18 ft - (4932 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 282.19 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 33 ft - (10058 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 31 ft - (9449 mm) |
| Percentage LP | * 129.84 % |
| Length Perpendicular | * 14.01 ft - (4270 mm) |
| Deck Angle | * 3.8 ° |
| Area | * 231.23 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
