Shearwater
Description

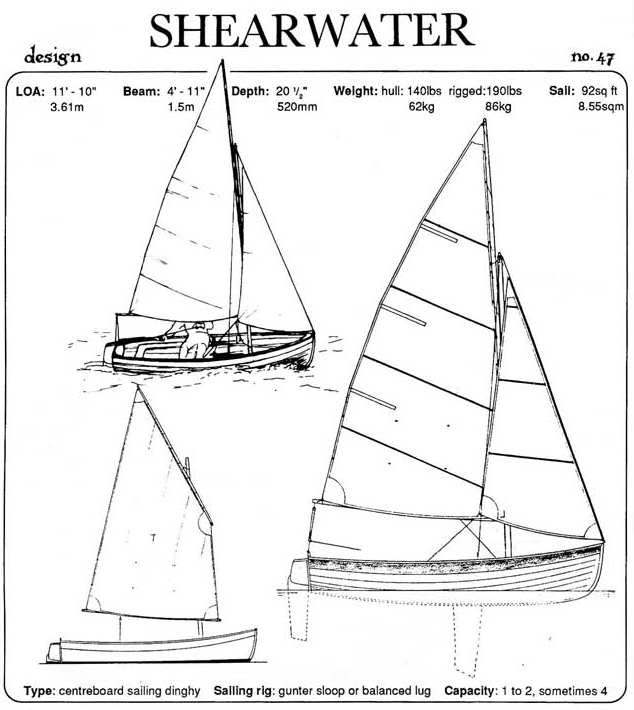

The Shearwater is a sailboat designed by Iain Oughtred.
Custom sail calculations are not possible for this boat as no I, J, P and E dimensions are available.
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | - |
| e | - |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | 15.5 ft - (4724 mm) |
| Foot | 7.33 ft - (2234 mm) |
| Leech-AftHdBd | * 15.99 ft - (4874 mm) |
| Tack Ang | * 81.06 ° |
| Diag (clew/head) | 16.083 ft - (4902 mm) |
| Head (inches) | 2 in |
| Area (no Roach) | * 57.23 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 11 ft - (3353 mm) |
| Foot | 5 ft - (1524 mm) |
| Leech | 9.33 ft - (2844 mm) |
| Area | * 23.22 ft² |
| Sail Type | LUGSAIL |
|---|---|
| Luff | 5.75 ft - (1753 mm) |
| Foot | 7.92 ft - (2414 mm) |
| Leech | 13.5 ft - (4115 mm) |
| Tack Angle | * 80.66 ° |
| Diag (clew/throat) | 9 ft - (2743 mm) |
| Head | 9.167 ft - (2794 mm) |
| Area | * 63.5 ft² |
| Sail Type | LUGSAIL |
|---|---|
| Luff | 6.42 ft - (1957 mm) |
| Foot | 6.58 ft - (2006 mm) |
| Leech | 13.5 ft - (4115 mm) |
| Tack Angle | * 90.71 ° |
| Diag (clew/throat) | 9.25 ft - (2819 mm) |
| Head | 8.83 ft - (2691 mm) |
| Area | * 61.69 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
