Shannon 43
Description

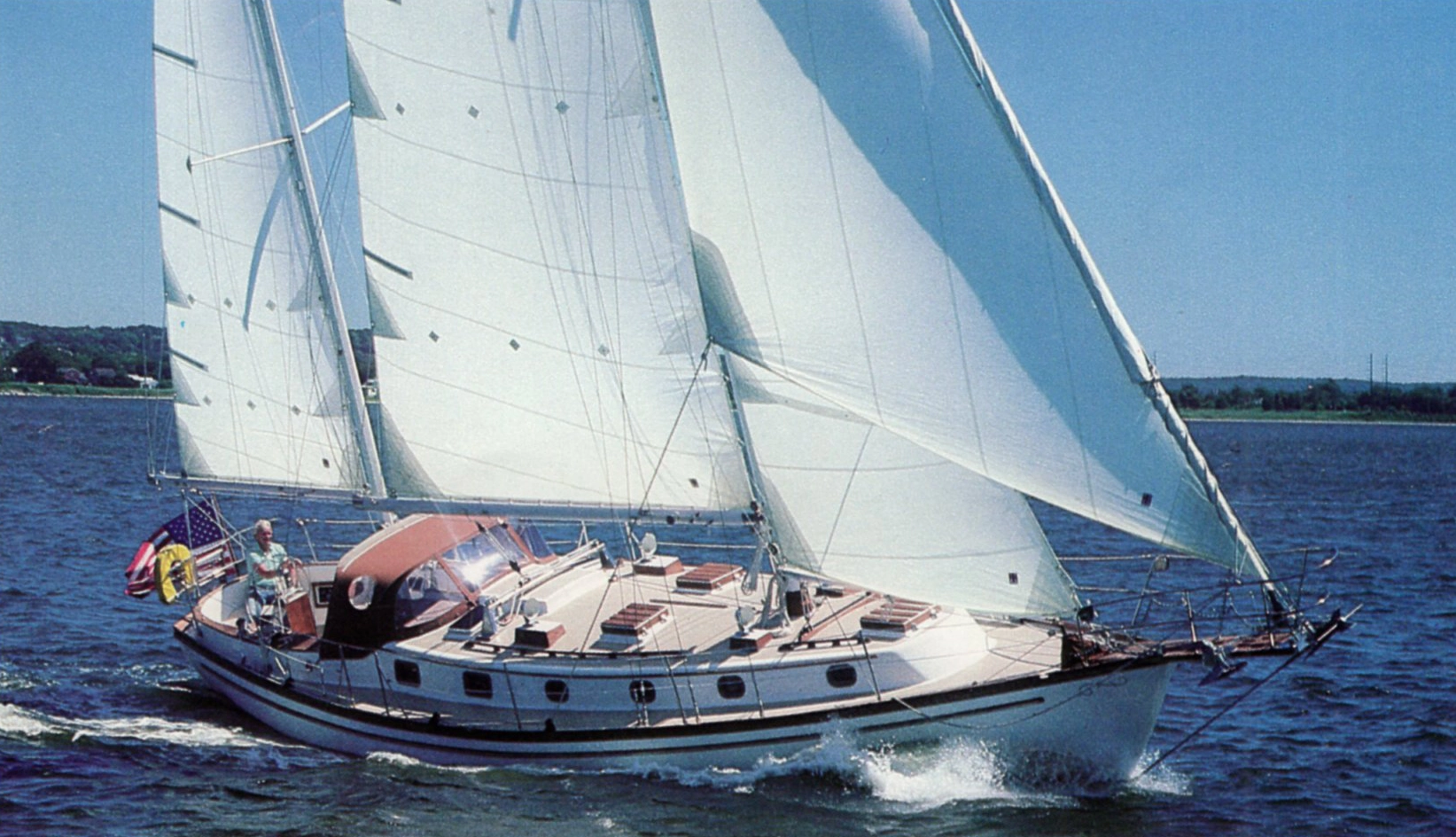

The Shannon 43 is a premium heavy-displacement bluewater cutter-rigged sailboat designed by Walter Schultz, first built in 1984 by Shannon Boat Company in Bristol, Rhode Island. Around 30-50 hulls were produced through the early 1990s (part of Shannon's high-end series with semi-custom options), featuring solid hand-laid fiberglass construction (no core), long keel or keel/centerboard, skeg rudder, and extensive teak joinery—optimized for long-distance cruising with superior stability, comfort, and shorthanded capability. Key features: center cockpit, cutter rig, large fuel/water tanks (150+ gal each), and luxurious U-shaped galley/saloon for 4-6.
Construction Details
| Designer | Walter Shultz |
|---|---|
| Builder | Shannon Boat Company in Bristol, Rhode Island |
| Length | 43.500 ft |
| LOA | 43.500 ft |
| LWL | 35.000 ft |
| Beam | 13.167 ft |
| Displacement | 28000 lb |
| Ballast | 11500 lb |
| Max Draft | 5.167 ft |
| Min Draft | 4.660 ft |
| Year Built | 1984 |
The standard boat dimensions
| i | 58.40 ft |
|---|---|
| j | 20.60 ft |
| p | 51.15 ft |
| e | 16.90 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 58.40 ft | 20.60 ft | 51.15 ft | 16.90 ft | - | - | - | - |
Documents
Sails
Shannon 43 - MAINSAIL
| Luff | * 51.15 ft - (15591 mm) |
|---|---|
| Foot | * 16.9 ft - (5151 mm) |
| Leech | * 53.15 ft - (16200 mm) |
| Tack Angle | * 88.01 ° |
| Diagonal | * 53.31 ft - (16249 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | 431.79 ft² |
| Edit in Calculator |
Shannon 43 - JIBSAIL
| Luff | * 49.54 ft - (15100 mm) |
|---|---|
| Foot | * 27.76 ft - (8461 mm) |
| Leech | * 42.32 ft - (12899 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 23.69 ft - (7221 mm) |
| Deck Angle | * 12 ° |
| Area | 586.79 ft² |
| Edit in Calculator |
Shannon 43 - GENOA
| Luff | * 58.83 ft - (17931 mm) |
|---|---|
| Foot | * 33.68 ft - (10266 mm) |
| Leech | * 54.95 ft - (16749 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 30.9 ft - (9418 mm) |
| Deck Angle | * 4 ° |
| Area | 909 ft² |
| Edit in Calculator |
Shannon 43 - SPINNAKER
| Stays | * 58.83 ft - (17931 mm) |
|---|---|
| MidGirth | * 37.08 ft - (11302 mm) |
| Foot | * 37.08 ft - (11302 mm) |
| Perc LP | * 180 % |
| Area | 1854.2 ft² |
| Edit in Calculator |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
