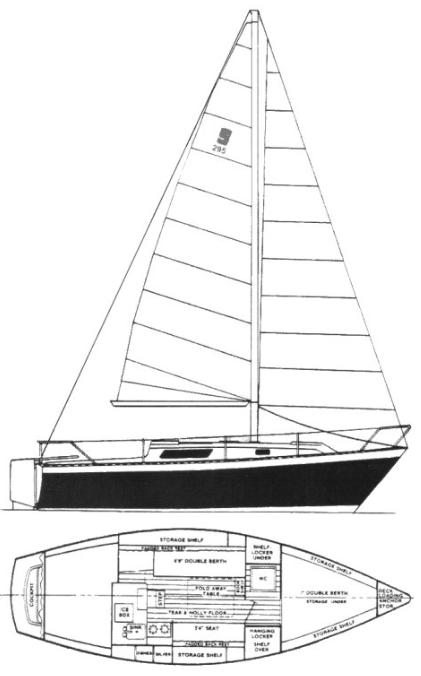

Seidelmann 295
Description
The SEIDELMANN 295 is a compact cruiser designed by J. Robert Seidelmann. She strikes a balance between performance and comfort, with a deep keel providing excellent upwind performance and stability. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | J. Robert Seidelmann |
|---|---|
| Length | 29.000 ft |
| LOA | 29.420 ft |
| LWL | 24.420 ft |
| Beam | 10.170 ft |
| Displacement | 7200 lb |
| Max Draft | 6.180 ft |
| Min Draft | 3.250 ft |
The standard boat dimensions
| i | 36 ft |
|---|---|
| j | 12 ft |
| p | 30.67 ft |
| e | 12.50 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 36 ft | 12 ft | 30.67 ft | 12.50 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 30.67 ft - (9348 mm) |
| Foot | * 12.5 ft - (3810 mm) |
| Leech-AftHdBd | * 32.53 ft - (9915 mm) |
| Tack Ang | * 88.03 ° |
| Diag (clew/head) | * 32.72 ft - (9973 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | 191.44 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 30.36 ft - (9254 mm) |
| Foot | * 16.01 ft - (4880 mm) |
| Leech | * 26.18 ft - (7980 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 13.8 ft - (4206 mm) |
| Deck Angle | * 12 ° |
| Area | 209.51 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 36.05 ft - (10988 mm) |
| Foot | * 19.47 ft - (5934 mm) |
| Leech | * 33.81 ft - (10305 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 18 ft - (5486 mm) |
| Deck Angle | * 4 ° |
| Area | 324.4 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | 34 ft - (10363 mm) |
| Foot | 16.67 ft - (5081 mm) |
| Leech | 31 ft - (9449 mm) |
| Length Perpendicular | 15.15 ft - (4618 mm) |
| Area | 257.55 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 36.05 ft - (10988 mm) |
| MidGirth | * 21.6 ft - (6584 mm) |
| Foot | * 21.6 ft - (6584 mm) |
| Perc LP | * 180 % |
| Area | 661.88 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
