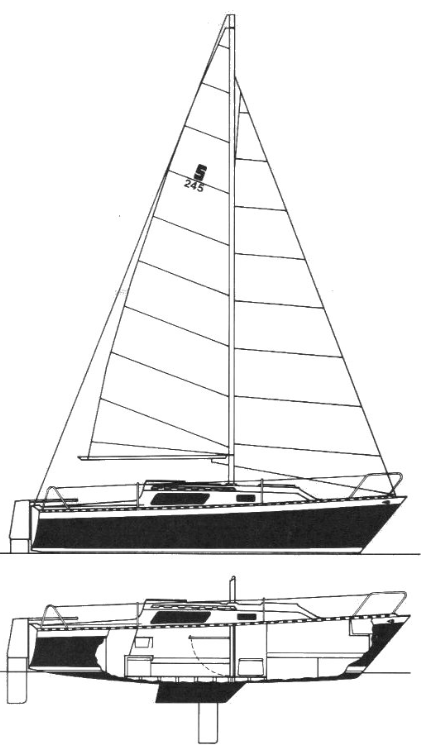

Seidelmann 245
Description
The SEIDELMANN 245 is a small sailboat designed by J. Robert Seidelmann. She strikes a balance between performance and comfort, featuring variable draft for versatility in different sailing conditions. An ideal choice for weekend cruising, day sailing, or club racing.
Construction Details
| Designer | J. Robert Seidelmann |
|---|---|
| Length | 24.000 ft |
| LOA | 24.180 ft |
| LWL | 20.500 ft |
| Beam | 8.000 ft |
| Displacement | 3000 lb |
| Max Draft | 4.420 ft |
| Min Draft | 1.920 ft |
The standard boat dimensions
| i | 27 ft |
|---|---|
| j | 10.75 ft |
| p | 27 ft |
| e | 9.75 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 27 ft | 10.75 ft | 27 ft | 9.75 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27 ft - (8230 mm) |
| Foot | * 9.75 ft - (2972 mm) |
| Leech-AftHdBd | * 28.26 ft - (8614 mm) |
| Tack Ang | * 88.03 ° |
| Diag (clew/head) | * 28.39 ft - (8653 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | 131.47 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 23.25 ft - (7087 mm) |
| Foot | * 14.86 ft - (4529 mm) |
| Leech | * 19.44 ft - (5925 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.36 ft - (3767 mm) |
| Deck Angle | * 12 ° |
| Area | 143.71 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 27.61 ft - (8416 mm) |
| Foot | * 17.9 ft - (5456 mm) |
| Leech | * 25.57 ft - (7794 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.13 ft - (4916 mm) |
| Deck Angle | * 4 ° |
| Area | 222.63 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 27.61 ft - (8416 mm) |
| MidGirth | * 19.35 ft - (5898 mm) |
| Foot | * 19.35 ft - (5898 mm) |
| Perc LP | * 180 % |
| Area | 454.12 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
