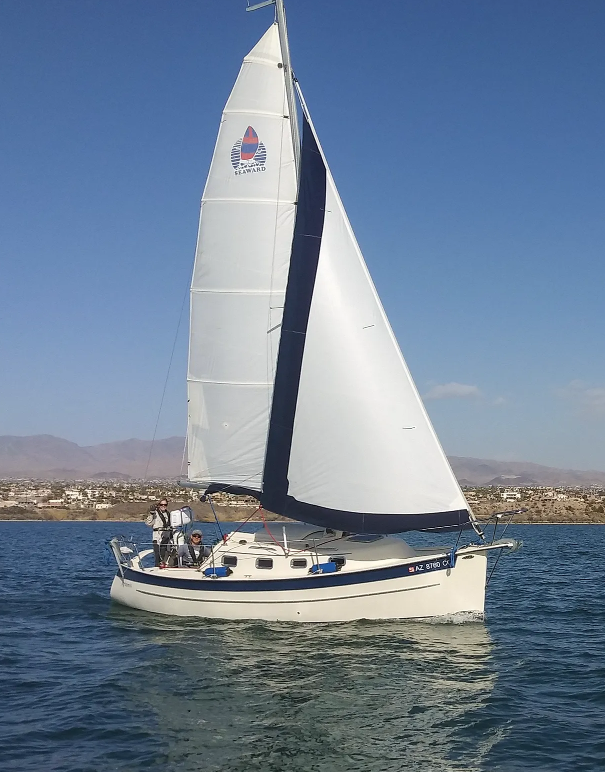

Seaward 26 Rk
Description
The Seaward 26 RK is a compact cruiser designed by Nick Hake. With her light displacement hull, she offers spirited performance, featuring variable draft for versatility in different sailing conditions. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
Designer | Nick Hake |
---|---|
Length | 28.420 ft |
LOA | 28.420 ft |
LWL | 24.670 ft |
Beam | 8.330 ft |
Displacement | 3800 lb |
Max Draft | 6.000 ft |
Min Draft | 1.250 ft |
The standard boat dimensions
i | 25.33 ft |
---|---|
j | 8.83 ft |
p | - |
e | - |
p2 | - |
e2 | - |
I | J | P | E | P2 | E2 |
---|---|---|---|---|---|
25.33 ft | 8.83 ft | - | - | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
Sail Type | JIBSAIL |
---|---|
Luff | * 21.46 ft - (6541 mm) |
Foot | * 11.87 ft - (3618 mm) |
Leech | * 18.37 ft - (5599 mm) |
Percentage LP | * 114.95 % |
Length Perpendicular | * 10.15 ft - (3094 mm) |
Deck Angle | * 11.99 ° |
Area | * 108.93 ft² |
Sail Type | GENOA |
---|---|
Luff | * 25.48 ft - (7766 mm) |
Foot | * 14.41 ft - (4392 mm) |
Leech | * 23.81 ft - (7257 mm) |
Percentage LP | * 149.94 % |
Length Perpendicular | * 13.24 ft - (4036 mm) |
Deck Angle | * 4.04 ° |
Area | * 168.67 ft² |
Sail Type | ASYMMETRICAL |
---|---|
Luff | 26.42 ft - (8053 mm) |
Foot | 16.25 ft - (4953 mm) |
Leech | 23.75 ft - (7239 mm) |
Perc LP | * 165 % |
Area | * 322 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
