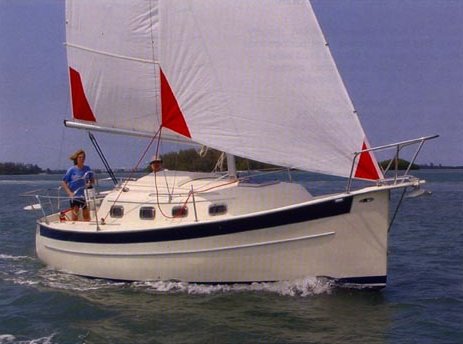

Seaward 25
Description
The Seaward 25 is a compact cruiser designed by Nick Hake. With her light displacement hull, she offers spirited performance, Her generous sail plan delivers excellent light-air performance. Well-suited for coastal cruising with occasional overnight passages.
Construction Details
| Designer | Nick Hake |
|---|---|
| Length | 26.750 ft |
| LOA | 26.750 ft |
| LWL | 23.000 ft |
| Beam | 8.330 ft |
| Displacement | 3600 lb |
| Max Draft | 2.080 ft |
The standard boat dimensions
| i | 25.50 ft |
|---|---|
| j | 8.75 ft |
| p | 25.92 ft |
| e | 10.42 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 25.50 ft | 8.75 ft | 25.92 ft | 10.42 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25.92 ft - (7900 mm) |
| Foot | * 10.42 ft - (3176 mm) |
| Leech-AftHdBd | * 27.39 ft - (8348 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 27.6 ft - (8412 mm) |
| Head (inches) | * 4.5 in |
| Area (no Roach) | * 139.23 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 8.75 ft - (2667 mm) |
| Leech | 22 ft - (6706 mm) |
| Percentage LP | * 66.99 % |
| Length Perpendicular | * 7.59 ft - (2313 mm) |
| Deck Angle | * 13.91 ° |
| Area | * 94.89 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech | 21.42 ft - (6529 mm) |
| Percentage LP | * 91.43 % |
| Length Perpendicular | * 8 ft - (2438 mm) |
| Deck Angle | * 13.74 ° |
| Area | * 99.96 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 25 ft - (7620 mm) |
| Foot | 9.75 ft - (2972 mm) |
| Leech | 22.25 ft - (6782 mm) |
| Percentage LP | * 98.86 % |
| Length Perpendicular | * 8.65 ft - (2637 mm) |
| Deck Angle | * 8.55 ° |
| Area | * 108.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 25.61 ft - (7806 mm) |
| Foot | * 14.25 ft - (4343 mm) |
| Leech | * 23.96 ft - (7303 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 13.12 ft - (3999 mm) |
| Deck Angle | * 4.03 ° |
| Area | * 168 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | 26 ft - (7925 mm) |
| Foot | 15 ft - (4572 mm) |
| Leech | 24 ft - (7315 mm) |
| Perc LP | * 165 % |
| Area | * 292 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
