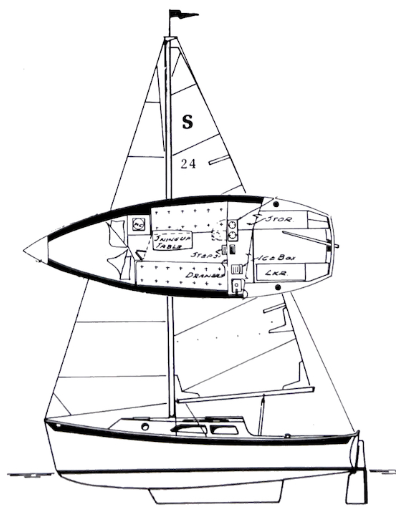

Seaward 24 Cruiser
Description
The Seaward 24 Cruiser is an American trailerable sailboat designed by Nick Hake as a compact pocket cruiser, suitable for solo, couple, or small family use on small lakes, bays, or protected coastal waters. Introduced in 1986 by Seaward Yachts (Hake Yachts) in Florida during the trailerable sailboat resurgence, it was Hake's evolution of his earlier designs like the Seaward 23, targeting beginners and recreational sailors with its lightweight, easy-to-launch construction and centerboard for shallow drafts. Production was low volume (estimated <100 units), ending in the late 1980s as Hake shifted to larger models. The design features a fiberglass monohull with a centerboard keel and transom-hung rudder for stable, responsive handling, a narrow beam for easy trailering, and a fractional sloop rig for light-air performance and simplicity, with a low displacement/length ratio for quick acceleration and a moderate ballast ratio for stiffness in gusts, though its low righting moment limits it to calm conditions.
Construction Details
| Designer | Nick Hake |
|---|---|
| Builder | Seaward Yachts (Hake Yachts) |
| Length | 24.330 ft |
| LOA | 24.330 ft |
| LWL | 21.000 ft |
| Beam | 8.000 ft |
| Displacement | 3100 lb |
| Ballast | 1100 lb |
| Max Draft | 3.500 ft |
| Min Draft | 0.833 ft |
| Year Built | 1986 |
The standard boat dimensions
| i | 25.50 ft |
|---|---|
| j | 8.75 ft |
| p | 25.92 ft |
| e | 10.42 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 25.50 ft | 8.75 ft | 25.92 ft | 10.42 ft | - | - | - | - |
Sails
Seaward 24 Cruiser - MAINSAIL
| Luff | * 25.66 ft - (7821 mm) |
|---|---|
| Foot | * 9.5 ft - (2896 mm) |
| Leech | * 26.84 ft - (8181 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 27.05 ft - (8245 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 126 ft² |
| Edit in Calculator | |
Seaward 24 Cruiser - JIBSAIL
| Luff | 24 ft - (7315 mm) |
|---|---|
| Foot | 10.5 ft - (3200 mm) |
| Leech | 19.75 ft - (6020 mm) |
| Percentage LP | * 97.14 % |
| Length Perpendicular | * 8.5 ft - (2591 mm) |
| Deck Angle | * 17.05 ° |
| Area | * 101.95 ft² |
| Edit in Calculator | |
Seaward 24 Cruiser - JIBSAIL
| Luff | * 21.57 ft - (6575 mm) |
|---|---|
| Foot | * 12.48 ft - (3804 mm) |
| Leech | * 18.94 ft - (5773 mm) |
| Percentage LP | * 124.57 % |
| Length Perpendicular | * 10.9 ft - (3322 mm) |
| Deck Angle | * 10.22 ° |
| Area | * 117.54 ft² |
| Edit in Calculator | |
Seaward 24 Cruiser - GENOA
| Luff | 25.75 ft - (7849 mm) |
|---|---|
| Foot | * 14.03 ft - (4276 mm) |
| Leech | * 24.6 ft - (7498 mm) |
| Percentage LP | 150 % |
| Length Perpendicular | * 13.13 ft - (4002 mm) |
| Deck Angle | * 1.71 ° |
| Area | * 169.04 ft² |
| Edit in Calculator | |
Seaward 24 Cruiser - GENOA
| Luff | 24.25 ft - (7391 mm) |
|---|---|
| Foot | 13.75 ft - (4191 mm) |
| Leech | 21.92 ft - (6681 mm) |
| Percentage LP | * 140.69 % |
| Length Perpendicular | * 12.31 ft - (3752 mm) |
| Deck Angle | * 7.47 ° |
| Area | * 149.32 ft² |
| Edit in Calculator | |
Seaward 24 Cruiser - STORMJIB
| Luff | 17.67 ft - (5386 mm) |
|---|---|
| Foot | 8 ft - (2438 mm) |
| Leech | 14 ft - (4267 mm) |
| Perc LP | * 70.4 % |
| Length Perp | * 6.16 ft - (1878 mm) |
| Deck Angle | * 20.67 ° |
| Area | * 54.46 ft² |
| Edit in Calculator | |
