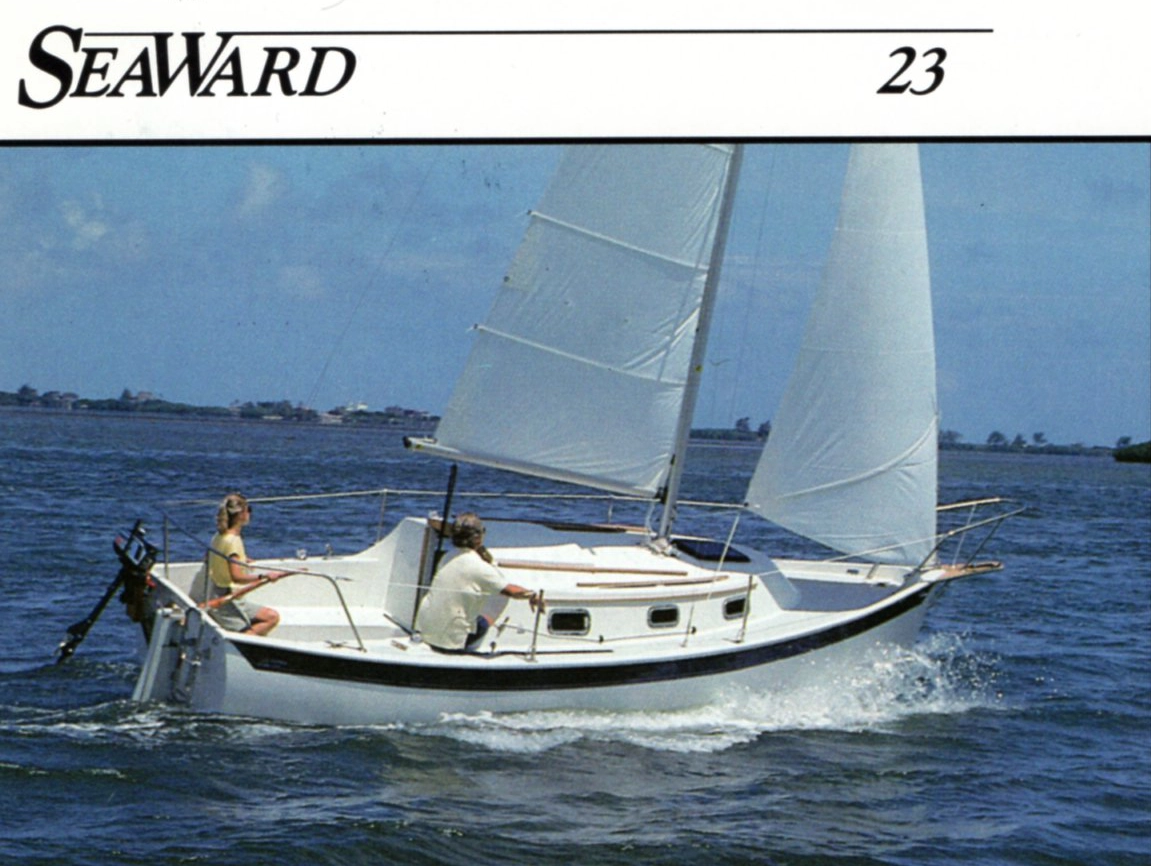

Seaward 23
Description
Introduced in 1986 produced through 2002.
Construction Details
| Designer | Nick Hake |
|---|---|
| Length | 22.670 ft |
| LOA | 24.500 ft |
| LWL | 21.000 ft |
| Beam | 8.330 ft |
| Displacement | 2700 lb |
| Max Draft | 2.080 ft |
The standard boat dimensions
| i | - |
|---|---|
| j | - |
| p | 25 ft |
| e | 8.33 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| - | - | 25 ft | 8.33 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, P, and E)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 25 ft - (7620 mm) |
| Foot | * 8.33 ft - (2539 mm) |
| Leech | * 25.89 ft - (7891 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 26.07 ft - (7946 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 107.7 ft² |
| Sail Type | STORMTRYSAIL |
|---|---|
| Luff | * 9.34 ft - (2847 mm) |
| Foot | * 8.58 ft - (2615 mm) |
| Leech | * 7.78 ft - (2371 mm) |
| Length Perp | * 7.78 ft - (2371 mm) |
| Tack Angle | * -25 ° |
| Area | * 31 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
