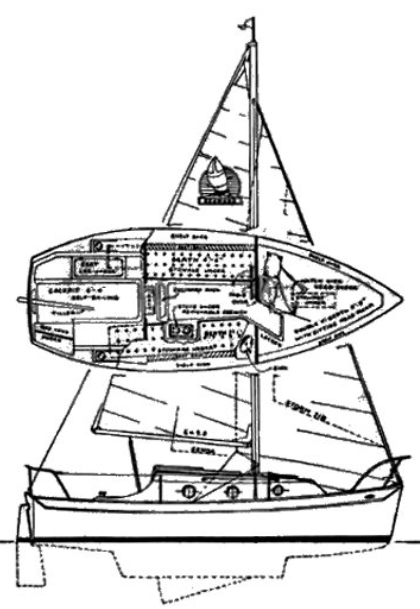

Seaward 22
Description
The Seaward 22 is an American trailerable sailboat designed by Nick Hake as a compact coastal cruiser-racer, suitable for family day sailing, weekend overnights, and light recreational use on lakes, bays, or protected coastal waters. Introduced in 1985 by Hake Yachts (under the Seaward brand) in Florida during the trailerable sailboat resurgence, it was Hake's evolution of his earlier Slipper 17, targeting beginners and recreational sailors with its lightweight, easy-to-launch construction and centerboard for shallow drafts. Production was low volume (estimated <100 units), ending in the late 1980s as Hake shifted to larger models. The design features a fiberglass monohull with a keel/centerboard and transom-hung rudder for stable, responsive handling, a moderate beam for stability, and a fractional sloop rig for efficient sail trim and good light-air performance, with a low displacement/length ratio for quick acceleration and a moderate ballast ratio for stiffness in gusts, though its low righting moment limits it to calm conditions.
Construction Details
| Designer | Nick Hake |
|---|---|
| Builder | Seaward Yachts (Hake Yachts) |
| Length | 22.000 ft |
| LOA | 22.000 ft |
| LWL | 20.580 ft |
| Beam | 8.500 ft |
| Displacement | 2200 lb |
| Ballast | 850 lb |
| Max Draft | 4.920 ft |
| Min Draft | 1.040 ft |
| Year Built | 1985 |
The standard boat dimensions
| i | 23 ft |
|---|---|
| j | 8 ft |
| p | 22.50 ft |
| e | 9 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 23 ft | 8 ft | 22.50 ft | 9 ft | - | - | - | - |
Sails
Seaward 22 - MAINSAIL
| Luff | * 22.5 ft - (6858 mm) |
|---|---|
| Foot | * 9 ft - (2743 mm) |
| Leech | * 23.75 ft - (7239 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 23.94 ft - (7297 mm) |
| Head (inches) | * 4 in - (102 mm) |
| Area | * 104.46 ft² |
| Edit in Calculator | |
Seaward 22 - JIBSAIL
| Luff | * 19.48 ft - (5938 mm) |
|---|---|
| Foot | * 10.75 ft - (3277 mm) |
| Leech | * 16.68 ft - (5084 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 9.2 ft - (2804 mm) |
| Deck Angle | * 12 ° |
| Area | * 89.58 ft² |
| Edit in Calculator | |
Seaward 22 - JIBSAIL
| Luff | 22 ft - (6706 mm) |
|---|---|
| Foot | 10.92 ft - (3328 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Percentage LP | * 120.88 % |
| Length Perpendicular | * 9.67 ft - (2947 mm) |
| Deck Angle | * 8.47 ° |
| Area | * 106.4 ft² |
| Edit in Calculator | |
Seaward 22 - GENOA
| Luff | * 23.13 ft - (7050 mm) |
|---|---|
| Foot | * 13.05 ft - (3978 mm) |
| Leech | * 21.63 ft - (6593 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 12 ft - (3658 mm) |
| Deck Angle | * 3.98 ° |
| Area | * 138.76 ft² |
| Edit in Calculator | |
Seaward 22 - ASYMMETRICAL
| Luff | * 23.13 ft - (7050 mm) |
|---|---|
| Foot | * 13.2 ft - (4023 mm) |
| Leech | * 21.28 ft - (6486 mm) |
| Perc LP | * 165 % |
| Area | * 229 ft² |
| Edit in Calculator | |
Seaward 22 - STORMJIB
| Luff | * 13.39 ft - (4081 mm) |
|---|---|
| Foot | * 6.11 ft - (1862 mm) |
| Leech | * 10.74 ft - (3274 mm) |
| Perc LP | * 60 % |
| Length Perp | * 4.8 ft - (1463 mm) |
| Deck Angle | * 19.06 ° |
| Area | * 32.13 ft² |
| Edit in Calculator | |
