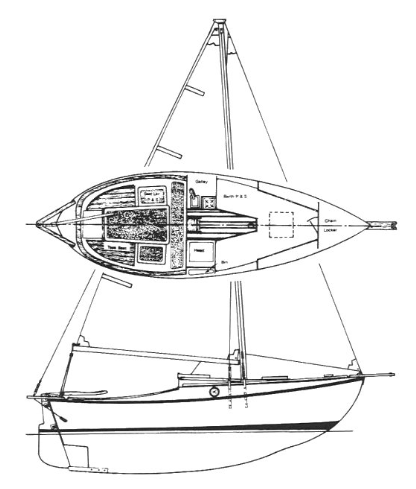

Seaforth 24
Description
The Seaforth 24 is a charming, classic American trailerable pocket cruiser designed by Stephen Seaton (a naval architect later known for larger power yachts) as a sturdy coastal cruiser. First built in 1977 by Capson Marine and later by Precision Boat Works in Florida, it's now out of production but has a dedicated following among owners who appreciate its traditional lines, seaworthiness for its size, and no-nonsense build. This is a fiberglass monohull with wood trim, featuring a masthead sloop rig (with a small bowsprit and boomkin for the backstay), a spooned raked stem, angled transom, and a long fixed keel with a transom-hung rudder steered by tiller. It's built for easy trailering (though at 4,200 lbs displacement it's on the heavier side for a 24-footer, so plan for a capable tow vehicle).
Construction Details
| Designer | Stephen Seaton |
|---|---|
| Builder | Capson Marine |
| Length | 24.000 ft |
| LOA | 24.000 ft |
| LWL | 17.000 ft |
| Beam | 7.330 ft |
| Displacement | 4200 lb |
| Ballast | 1600 lb |
| Max Draft | 2.500 ft |
| Year Built | 1977 |
The standard boat dimensions
| i | 24.50 ft |
|---|---|
| j | 7.50 ft |
| p | 21.82 ft |
| e | 10.67 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 24.50 ft | 7.50 ft | 21.82 ft | 10.67 ft | - | - | - | - |
Sails
Seaforth 24 - MAINSAIL
| Luff | * 21.82 ft - (6651 mm) |
|---|---|
| Foot | * 10.67 ft - (3252 mm) |
| Leech | * 23.73 ft - (7233 mm) |
| Tack Angle | * 88 ° |
| Diagonal | * 23.95 ft - (7300 mm) |
| Head (inches) | * 4.5 in - (114 mm) |
| Area | * 119.96 ft² |
| Edit in Calculator | |
Seaforth 24 - JIBSAIL
| Luff | * 20.5 ft - (6248 mm) |
|---|---|
| Foot | * 9.86 ft - (3005 mm) |
| Leech | * 17.92 ft - (5462 mm) |
| Percentage LP | * 114.93 % |
| Length Perpendicular | * 8.62 ft - (2627 mm) |
| Deck Angle | * 12.04 ° |
| Area | * 88.34 ft² |
| Edit in Calculator | |
Seaforth 24 - GENOA
| Luff | * 24.34 ft - (7419 mm) |
|---|---|
| Foot | * 12.05 ft - (3673 mm) |
| Leech | * 22.97 ft - (7001 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 11.25 ft - (3429 mm) |
| Deck Angle | * 3.96 ° |
| Area | * 136.93 ft² |
| Edit in Calculator | |
Seaforth 24 - ASYMMETRICAL
| Luff | 25 ft - (7620 mm) |
|---|---|
| Foot | 13.5 ft - (4115 mm) |
| Leech | 23 ft - (7010 mm) |
| Perc LP | * 165 % |
| Area | * 253 ft² |
| Edit in Calculator | |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
