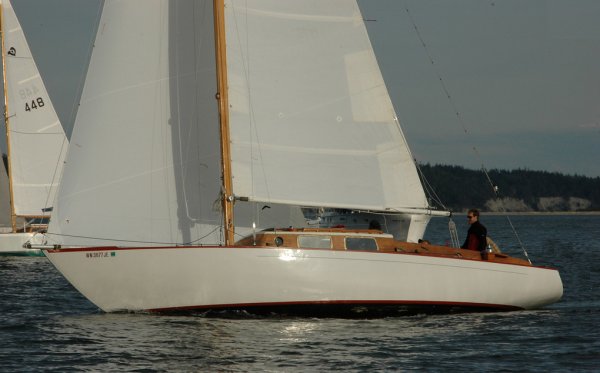

Seafair 32
Description
The Seafair 32 is a mid-sized cruiser designed by Ben Seaborn. She combines good sailing performance with comfortable accommodations, Her generous sail plan delivers excellent light-air performance. A capable coastal cruiser with the ability to handle longer passages comfortably.
Construction Details
| Designer | Ben Seaborn |
|---|---|
| Length | 32.000 ft |
| LOA | 32.000 ft |
| LWL | 28.420 ft |
| Beam | 8.070 ft |
| Displacement | 8000 lb |
| Max Draft | 5.420 ft |
The standard boat dimensions
| i | 34.67 ft |
|---|---|
| j | 11 ft |
| p | 32.17 ft |
| e | 13 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 34.67 ft | 11 ft | 32.17 ft | 13 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 32.17 ft - (9805 mm) |
| Foot | * 13 ft - (3962 mm) |
| Leech-AftHdBd | * 33.99 ft - (10360 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 34.27 ft - (10445 mm) |
| Head (inches) | * 6 in |
| Area (no Roach) | * 216.05 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 29.1 ft - (8870 mm) |
| Foot | * 14.55 ft - (4435 mm) |
| Leech | * 25.3 ft - (7711 mm) |
| Percentage LP | * 115 % |
| Length Perpendicular | * 12.65 ft - (3856 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 184.05 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 34.55 ft - (10531 mm) |
| Foot | * 17.75 ft - (5410 mm) |
| Leech | * 32.51 ft - (9909 mm) |
| Percentage LP | * 150 % |
| Length Perpendicular | * 16.5 ft - (5029 mm) |
| Deck Angle | * 4.01 ° |
| Area | * 285.06 ft² |
| Sail Type | ASYMMETRICAL |
|---|---|
| Luff | * 34.55 ft - (10531 mm) |
| Foot | * 18.15 ft - (5532 mm) |
| Leech | * 31.79 ft - (9690 mm) |
| Perc LP | * 165 % |
| Area | * 470 ft² |
| Sail Type | STORMJIB |
|---|---|
| Luff | * 20.01 ft - (6099 mm) |
| Foot | * 8.22 ft - (2505 mm) |
| Leech | * 16.49 ft - (5026 mm) |
| Perc LP | * 60 % |
| Length Perp | * 6.6 ft - (2012 mm) |
| Deck Angle | * 18.98 ° |
| Area | * 66.04 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
