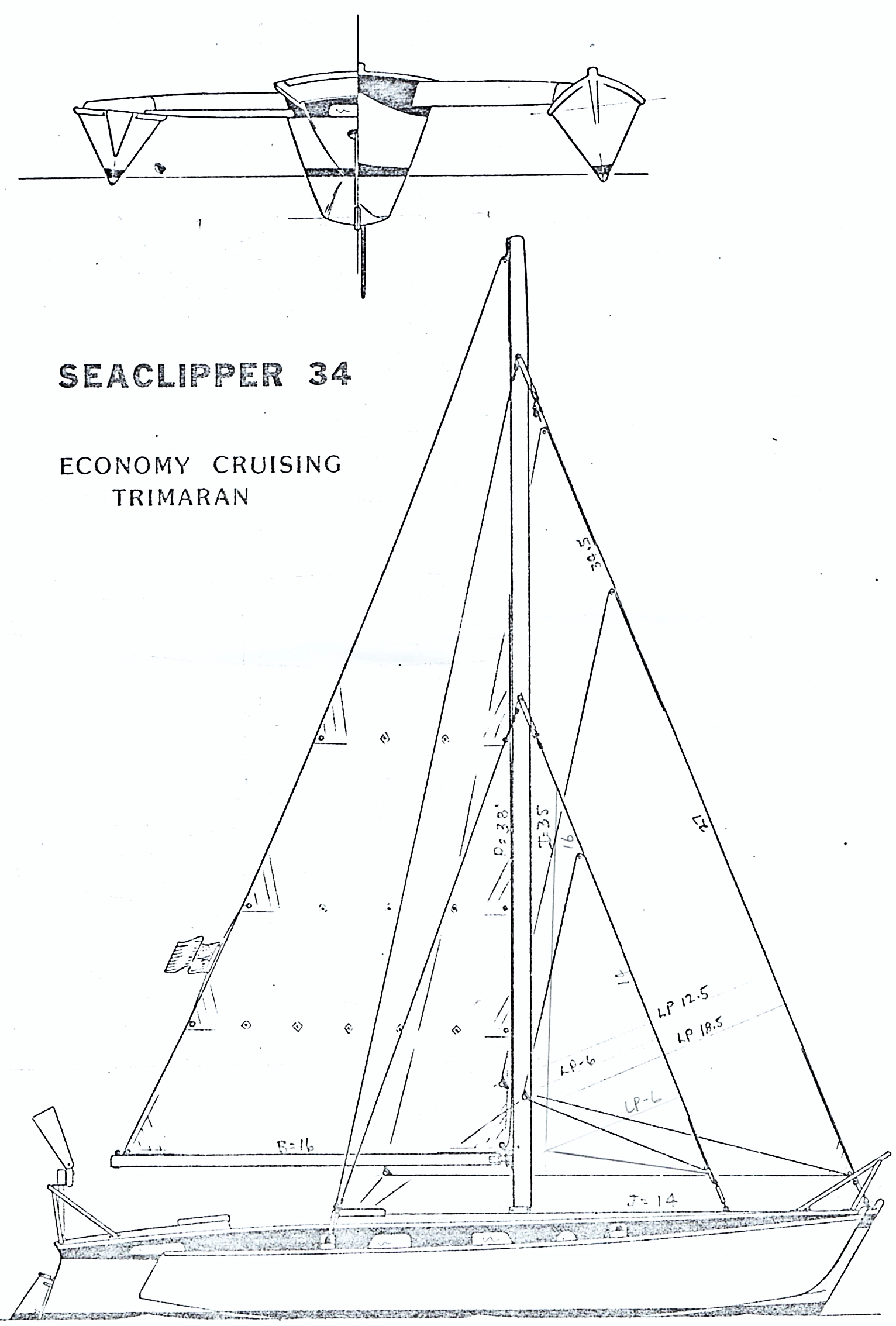

Seaclipper 34
Description
The Seaclipper 34 is a plywood demountable cruising trimaran designed by John Marples (of Searunner fame) in the late 1970s/early 1980s as an "economy cruiser" for offshore passages and extended coastal voyages. Part of the Seaclipper series of affordable, home buildable multihulls, it features a simple sloop rig, folding/demountable akas (crossbeams) for trailering or storage (under 8 ft beam when disassembled), and a focus on stability, speed, and ease of construction using stitch-and-glue plywood/epoxy methods. With standing headroom in the main cabin and an optional aft berth, it's suited for couples or small families seeking a lightweight (under 6,000 lbs) bluewater-capable boat without the complexity of larger tris. Fewer than 50 were likely built due to its niche appeal, but survivors are prized for their performance and simplicity
Construction Details
| Designer | John Marples |
|---|---|
| Length | 34.000 ft |
| LOA | 34.000 ft |
| Beam | 22.000 ft |
| Displacement | 5500 lb |
| Max Draft | 5.000 ft |
| Min Draft | 1.000 ft |
The standard boat dimensions
| i | 35 ft |
|---|---|
| j | 14 ft |
| p | 38 ft |
| e | 16 ft |
| p2 | - |
| e2 | - |
| i2 | - |
| j2 | - |
| I | J | P | E | P2 | E2 | I2 | J2 |
|---|---|---|---|---|---|---|---|
| 35 ft | 14 ft | 38 ft | 16 ft | - | - | - | - |
Documents
Sails
Seaclipper 34 - MAINSAIL
| Luff | 36.42 ft - (11101 mm) |
|---|---|
| Foot | 16 ft - (4877 mm) |
| Leech | * 39.55 ft - (12055 mm) |
| Tack Angle | * 90.2 ° |
| Diagonal | 39.83 ft - (12140 mm) |
| Head (inches) | * 6 in - (152 mm) |
| Area | * 299.58 ft² |
| Edit in Calculator | |
Seaclipper 34 - JIBSAIL
| Luff | 26 ft - (7925 mm) |
|---|---|
| Foot | 15 ft - (4572 mm) |
| Leech | 20.75 ft - (6325 mm) |
| Percentage LP | * 85.43 % |
| Length Perpendicular | * 11.96 ft - (3645 mm) |
| Deck Angle | * 15.29 ° |
| Area | * 155.54 ft² |
| Edit in Calculator | |
Seaclipper 34 - GENOA
| Luff | 33 ft - (10058 mm) |
|---|---|
| Foot | 19.25 ft - (5867 mm) |
| Leech | 31.25 ft - (9525 mm) |
| Percentage LP | * 127.14 % |
| Length Perpendicular | * 17.8 ft - (5425 mm) |
| Deck Angle | * 0.54 ° |
| Area | * 293.78 ft² |
| Edit in Calculator | |
Seaclipper 34 - ASYMMETRICAL
| Luff | * 35.81 ft - (10915 mm) |
|---|---|
| Foot | * 23.1 ft - (7041 mm) |
| Leech | * 32.95 ft - (10043 mm) |
| Perc LP | * 165 % |
| Area | * 620 ft² |
| Edit in Calculator | |
Seaclipper 34 - STAYSAIL
| Luff | 16 ft - (4877 mm) |
|---|---|
| Foot | 6.5 ft - (1981 mm) |
| Leech | 14.167 ft - (4318 mm) |
| Length Perpendicular | * 5.74 ft - (1750 mm) |
| Deck Angle | * 5 ° |
| Area | * 45.93 ft² |
| Edit in Calculator | |
Seaclipper 34 - STORMJIB
| Luff | 14 ft - (4267 mm) |
|---|---|
| Foot | 8.167 ft - (2489 mm) |
| Leech | 10.25 ft - (3124 mm) |
| Perc LP | * 42.29 % |
| Length Perp | * 5.92 ft - (1804 mm) |
| Deck Angle | * 21.78 ° |
| Area | * 41.41 ft² |
| Edit in Calculator | |
