Seaclipper 16

Seaclipper 16

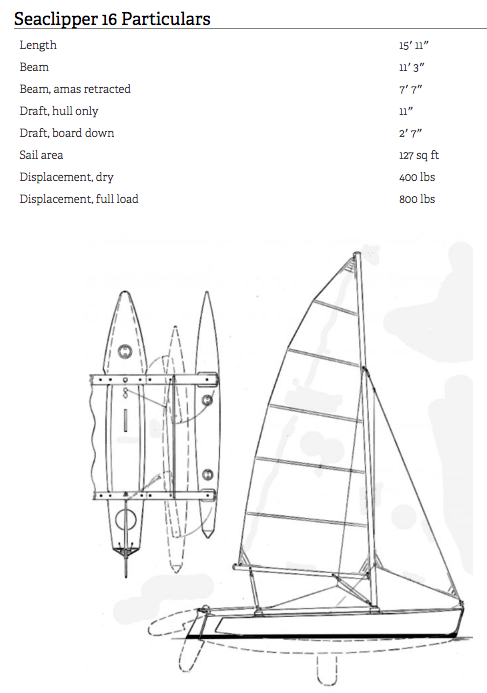

Description

The Seaclipper 16 is a lightweight, folding plywood trimaran designed by John Marples of Searunner Multihulls in 1990 as part of a series of nine affordable, trailerable day sailors and cruisers. Intended for novice home builders, it emphasizes simplicity, stability, and speed in a compact package, using just 12 sheets of marine plywood and common lumber. The design features a central vaka (main hull) with retractable amas (outriggers) that fold inward for trailering or storage under 8 feet wide, making it ideal for beach launching, lake sailing, or family outings. Over hundreds have been built worldwide since plans became available, with many owners converting it to open-cockpit cruisers for overnight camping. It's praised for its "exciting yet safe" handling in breezes up to 20 knots, though it's a day boat at heart—not suited for heavy seas or long passages without mods. The Seaclipper 16's high sail area/displacement ratio (~20+) yields brisk speeds—6–7 knots in 8–10 knot winds, up to 13 knots reefed in stiff breezes—thanks to the efficient Hobie 14 rig and wide beam leveraging the amas for lift without capsizing. It tacks smoothly, maintaining momentum, and handles chop dryly with angled ama bottoms reducing slap and drag. Stability is a standout: amas support 220 lbs each without immersion, allowing free movement or lounging on the windward side. Upwind pointing is solid (40–45° apparent), but it excels on reaches; in light air, add a drifter. The flat-bottom vaka beaches easily, and the kick-up rudder/daggerboard suit shallows.

Construction Details

Designer John Marples
Length 15.920 ft
LOA 15.920 ft
Beam 11.250 ft
Displacement 400 lb
Max Draft 2.580 ft
Min Draft 0.920 ft
Request A Sail Quote

The standard boat dimensions

i 20 ft
j 7 ft
p -
e -
p2 -
e2 -
i2 -
j2 -

Sails

Seaclipper 16 - MAINSAIL

Luff 20.75 ft - (6325 mm)
Foot 10 ft - (3048 mm)
Leech * 21.36 ft - (6511 mm)
Tack Angle * 81.01 °
Diagonal 21.58 ft - (6578 mm)
Head (inches) * 4.5 in - (114 mm)
Area * 105.73 ft²
Edit in Calculator

Seaclipper 16 - SPINNAKER

Stays 20 ft - (6096 mm)
MidGirth 13 ft - (3962 mm)
Foot 13 ft - (3962 mm)
Area * 221 ft²
Edit in Calculator

Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite. The information on this site is not guaranteed to be accurate. Sailrite offers this content as a service to our community, but takes no responsibility for the reliability of the data provided.
