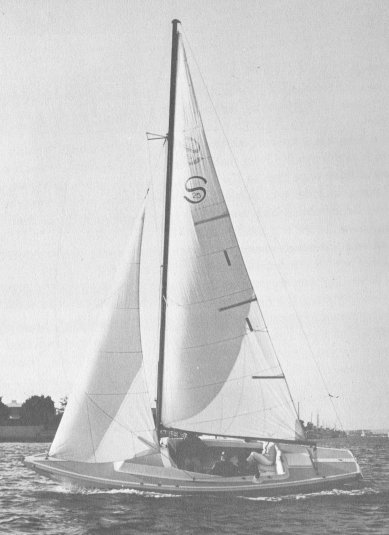

Schock 25
Description
2200 lbs. Disp. 1100 lbs. Ballast 16'4" LWL 7' Beam 4'1" Draft
Construction Details
| Designer | W. D. Schock Company |
|---|---|
| Length | 25.000 ft |
| LOA | 25.000 ft |
| LWL | 16.250 ft |
| Beam | 7.000 ft |
| Displacement | 2210 lb |
| Max Draft | 4.000 ft |
The standard boat dimensions
| i | 22 ft |
|---|---|
| j | 7.75 ft |
| p | 27.50 ft |
| e | 11 ft |
| p2 | - |
| e2 | - |
| I | J | P | E | P2 | E2 |
|---|---|---|---|---|---|
| 22 ft | 7.75 ft | 27.50 ft | 11 ft | - | - |
Sails
An asterisk indicates that a computer algorithm was used to determine the dimension based on sailboat rig dimensions (usually the I, J, E, and P)
| Sail Type | MAINSAIL |
|---|---|
| Luff | * 27.5 ft - (8382 mm) |
| Foot | * 11 ft - (3353 mm) |
| Leech-AftHdBd | * 29.02 ft - (8845 mm) |
| Tack Ang | * 88 ° |
| Diag (clew/head) | * 29.26 ft - (8918 mm) |
| Head (inches) | * 5.25 in |
| Area (no Roach) | * 156.49 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 21 ft - (6401 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech | 18.75 ft - (5715 mm) |
| Percentage LP | * 109.42 % |
| Length Perpendicular | * 8.48 ft - (2585 mm) |
| Deck Angle | * 7.36 ° |
| Area | * 89.06 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | 22 ft - (6706 mm) |
| Foot | 9.5 ft - (2896 mm) |
| Leech | 19.5 ft - (5944 mm) |
| Percentage LP | * 108.52 % |
| Length Perpendicular | * 8.41 ft - (2563 mm) |
| Deck Angle | * 8.25 ° |
| Area | * 92.56 ft² |
| Sail Type | JIBSAIL |
|---|---|
| Luff | * 18.66 ft - (5688 mm) |
| Foot | * 10.44 ft - (3182 mm) |
| Leech | * 15.94 ft - (4859 mm) |
| Percentage LP | * 114.97 % |
| Length Perpendicular | * 8.91 ft - (2716 mm) |
| Deck Angle | * 12.01 ° |
| Area | * 83.12 ft² |
| Sail Type | GENOA |
|---|---|
| Luff | * 22.16 ft - (6754 mm) |
| Foot | * 12.66 ft - (3859 mm) |
| Leech | * 20.7 ft - (6309 mm) |
| Percentage LP | * 149.94 % |
| Length Perpendicular | * 11.62 ft - (3542 mm) |
| Deck Angle | * 4 ° |
| Area | * 128.73 ft² |
| Sail Type | SPINNAKER |
|---|---|
| Stays | * 22.16 ft - (6754 mm) |
| MidGirth | * 13.95 ft - (4252 mm) |
| Foot | * 13.95 ft - (4252 mm) |
| Perc LP | * 180 % |
| Area | * 263 ft² |
Disclaimer. Boats are not all the same -- even when produced in the same factory of the same model. Sailrite does its best to publish accurate dimensions, but we often find it worthwhile to have our customers measure their boats carefully before we produce kits for them. You should take the same precautions, especially when the data is not from Sailrite.
